2SA1309ASA

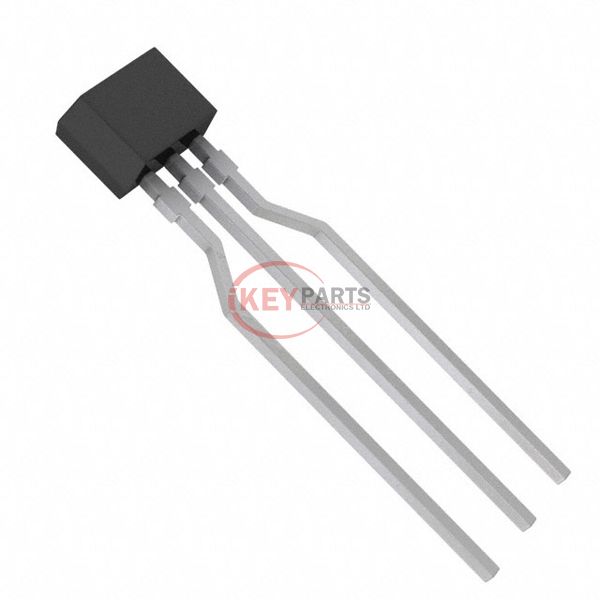

Enlarger

Lmages are for reference only See Product Specitications

Panasonic 2SA1309ASA

Manufacturer :
Panasonic
Mfr. Part # :
2SA1309ASA
Description
TRANS PNP 50V 0.1A NS-B1
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SA1309ASA PDF
In Stock
464
2SA1309ASA Tech Specifications
Series-
PackageCut Tape (CT)Tape & Box (TB)
Part StatusObsolete
Transistor TypePNP
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Vce Saturation (Max) @ Ib, Ic300mV @ 5mA, 50mA
Current - Collector Cutoff (Max)1µA
DC Current Gain (hFE) (Min) @ Ic, Vce290 @ 2mA, 10V
Power - Max300 mW
Frequency - Transition80MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case3-SSIP
Supplier Device PackageNS-B1
Request Quote Now
Request Quote Now

We can supply 2SA1309ASA, use the request quote form to request 2SA1309ASA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SA1309ASA. The price and lead time for 2SA1309ASA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SA1309ASA. We look forward to working with you to establish long-term relations of cooperation.
