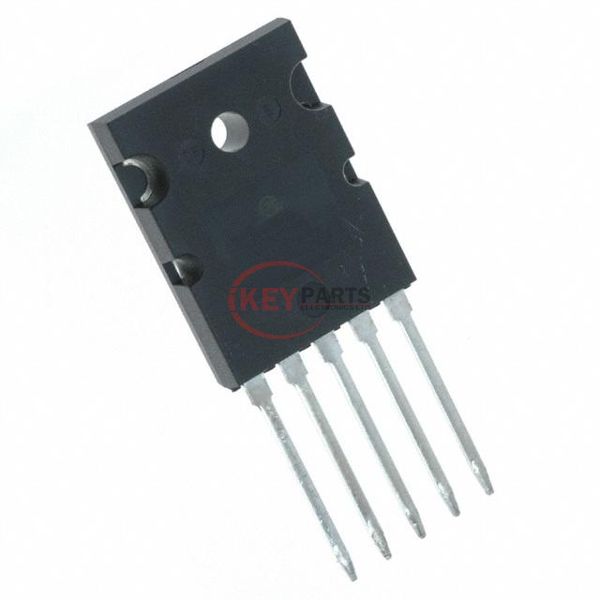

NJL1302D

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NJL1302D

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NJL1302D
Description
TRANS PNP 260V 15A TO-264
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NJL1302D PDF
In Stock
944
NJL1302D Tech Specifications
Series-
PackageTube
Part StatusObsolete
Transistor TypePNP
Current - Collector (Ic) (Max)15 A
Voltage - Collector Emitter Breakdown (Max)260 V
Vce Saturation (Max) @ Ib, Ic3V @ 1A, 10A
Current - Collector Cutoff (Max)50µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce75 @ 5A, 5V
Power - Max200 W
Frequency - Transition30MHz
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-5
Supplier Device PackageTO-264
Request Quote Now
Request Quote Now

We can supply NJL1302D, use the request quote form to request NJL1302D pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NJL1302D. The price and lead time for NJL1302D depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NJL1302D. We look forward to working with you to establish long-term relations of cooperation.
