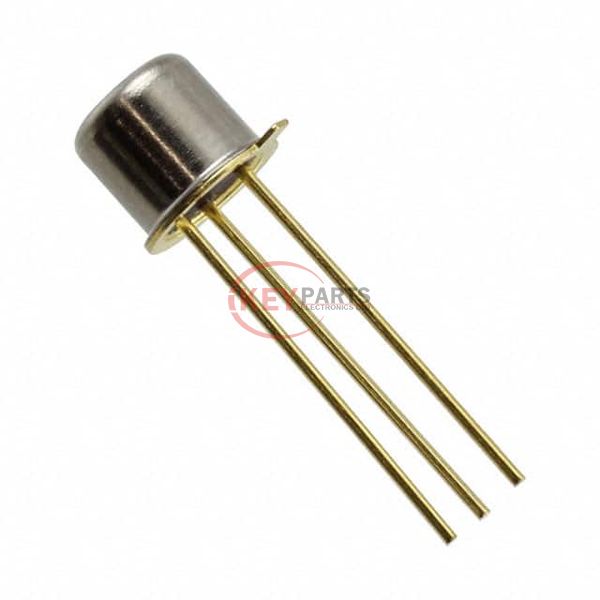

2N3701

Enlarger

Lmages are for reference only See Product Specitications

Central Semiconductor 2N3701

Manufacturer :
Central Semiconductor
Mfr. Part # :
2N3701
Description
THROUGH-HOLE TRANSISTOR-SMALL SI
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2N3701 PDF
In Stock
647
2N3701 Tech Specifications
Series-
PackageBulk
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 150mA, 10V
Power - Max1.8 W
Frequency - Transition80MHz
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-206AA, TO-18-3 Metal Can
Supplier Device PackageTO-18
Request Quote Now
Request Quote Now

We can supply 2N3701, use the request quote form to request 2N3701 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2N3701. The price and lead time for 2N3701 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2N3701. We look forward to working with you to establish long-term relations of cooperation.
