2SD22200RA

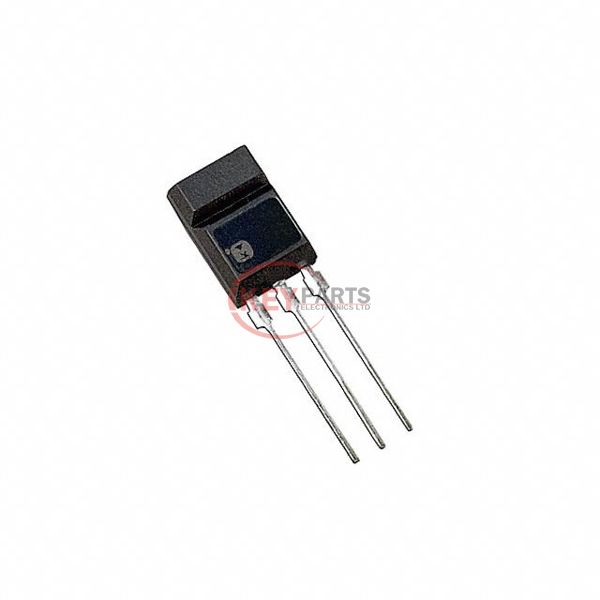

Enlarger

Lmages are for reference only See Product Specitications

Panasonic 2SD22200RA

Manufacturer :
Panasonic
Mfr. Part # :
2SD22200RA
Description
TRANS NPN DARL 80V 1A MT-3
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SD22200RA PDF
In Stock
321
2SD22200RA Tech Specifications
Series-
PackageCut Tape (CT)Tape & Box (TB)
Part StatusObsolete
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic1.8V @ 1mA, 1A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce8000 @ 1A, 10V
Power - Max1.5 W
Frequency - Transition150MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case3-SIP
Supplier Device PackageMT-3-A1
Request Quote Now
Request Quote Now

We can supply 2SD22200RA, use the request quote form to request 2SD22200RA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SD22200RA. The price and lead time for 2SD22200RA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SD22200RA. We look forward to working with you to establish long-term relations of cooperation.
