HD1760JL

Enlarger

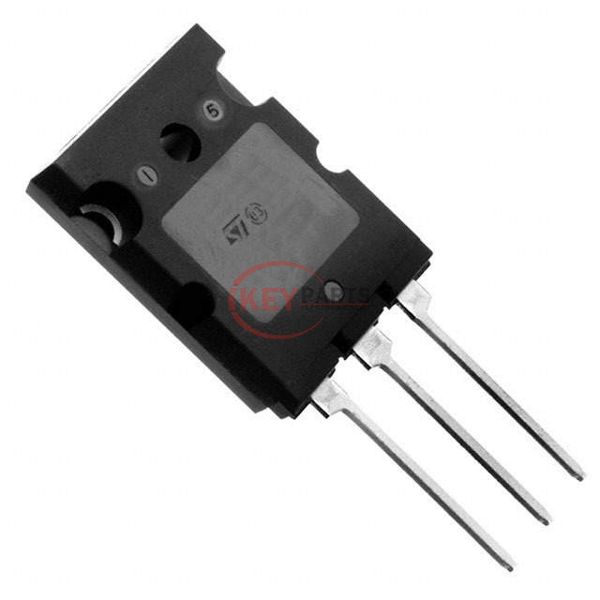

Lmages are for reference only See Product Specitications

STMicroelectronics HD1760JL

Manufacturer :
STMicroelectronics
Mfr. Part # :
HD1760JL
Description
TRANS NPN 800V 36A TO-264
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
HD1760JL PDF
In Stock
288
HD1760JL Tech Specifications
Series-
PackageTube
Part StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)36 A
Voltage - Collector Emitter Breakdown (Max)800 V
Vce Saturation (Max) @ Ib, Ic2V @ 4.5A, 18A
Current - Collector Cutoff (Max)200µA
DC Current Gain (hFE) (Min) @ Ic, Vce5 @ 18A, 5V
Power - Max200 W
Frequency - Transition-
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264
Request Quote Now
Request Quote Now

We can supply HD1760JL, use the request quote form to request HD1760JL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HD1760JL. The price and lead time for HD1760JL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HD1760JL. We look forward to working with you to establish long-term relations of cooperation.
