2SB11560P

Enlarger

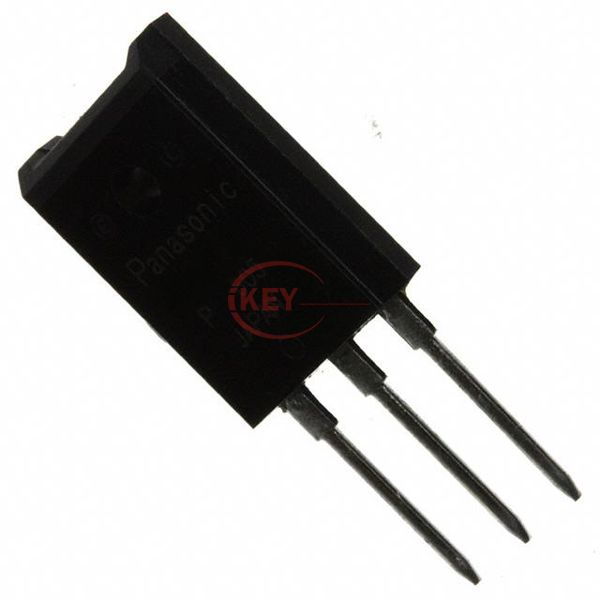

Lmages are for reference only See Product Specitications

Panasonic 2SB11560P

Manufacturer :
Panasonic
Mfr. Part # :
2SB11560P
Description
TRANS PNP 80V 20A TOP-3F
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SB11560P PDF
In Stock
805
2SB11560P Tech Specifications
Series-
PackageBulk
Part StatusObsolete
Transistor TypePNP
Current - Collector (Ic) (Max)20 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic1.5V @ 2A, 20A
Current - Collector Cutoff (Max)10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce130 @ 3A, 2V
Power - Max3 W
Frequency - Transition30MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTOP-3F
Supplier Device PackageTOP-3F-A1
Request Quote Now
Request Quote Now

We can supply 2SB11560P, use the request quote form to request 2SB11560P pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SB11560P. The price and lead time for 2SB11560P depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SB11560P. We look forward to working with you to establish long-term relations of cooperation.
