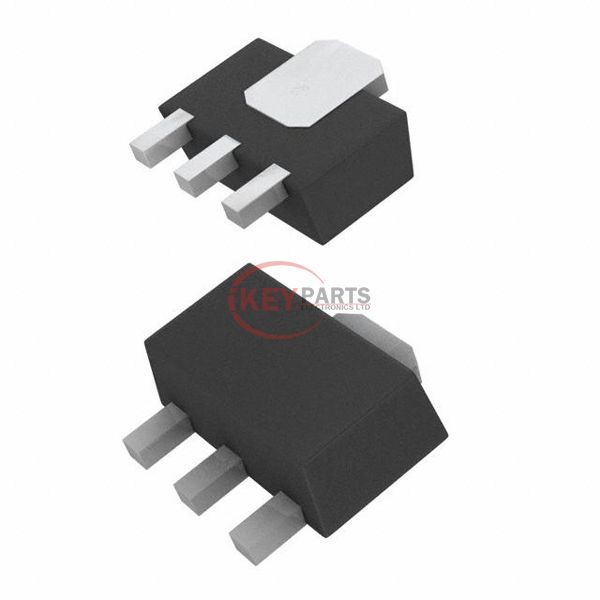

2SD1005-W-TP

Enlarger

Lmages are for reference only See Product Specitications

Micro Commercial Components (MCC) 2SD1005-W-TP

Manufacturer :
Micro Commercial Components (MCC)
Mfr. Part # :
2SD1005-W-TP
Description
TRANSISTOR TO-92 MOD
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SD1005-W-TP PDF
In Stock
604
2SD1005-W-TP Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce90 @ 100mA, 2V
Power - Max500 mW
Frequency - Transition160MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackageSOT-89
Request Quote Now
Request Quote Now

We can supply 2SD1005-W-TP, use the request quote form to request 2SD1005-W-TP pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SD1005-W-TP. The price and lead time for 2SD1005-W-TP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SD1005-W-TP. We look forward to working with you to establish long-term relations of cooperation.
