PDT10016

Enlarger

Lmages are for reference only See Product Specitications

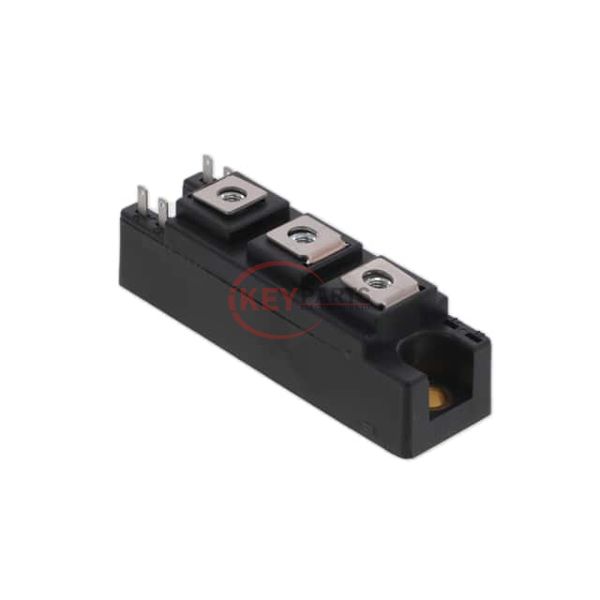

KYOCERA Corporation PDT10016

Manufacturer :
KYOCERA Corporation
Mfr. Part # :
PDT10016
Description
THYRISTOR MODULE PHASE LEG T+T 1
Catalog
Thyristors - SCRs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PDT10016 PDF
PDT10016 Tech Specifications
Series-
PackageBulk
Part StatusObsolete
StructureSeries Connection - All SCRs
Number of SCRs, Diodes2 SCRs
Voltage - Off State1.6 kV
Current - On State (It (AV)) (Max)100 A
Current - On State (It (RMS)) (Max)156 A
Voltage - Gate Trigger (Vgt) (Max)2.5 V
Current - Gate Trigger (Igt) (Max)100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)2000A @ 50Hz
Current - Hold (Ih) (Max)50 mA
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Request Quote Now
Request Quote Now

We can supply PDT10016, use the request quote form to request PDT10016 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PDT10016. The price and lead time for PDT10016 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PDT10016. We look forward to working with you to establish long-term relations of cooperation.
