Series | - | |
Package | Tube | |
Part Status | Obsolete | |
Switch Type | General Purpose | |
Number of Outputs | 1 | |
Ratio - Input:Output | 1:1 | |
Output Configuration | High Side | |
Output Type | N-Channel | |
Interface | On/Off | |
Voltage - Load | 5.5V ~ 36V | |
Voltage - Supply (Vcc/Vdd) | Not Required | |
Current - Output (Max) | 9A | |
Rds On (Typ) | 40mOhm (Max) | |
Input Type | Non-Inverting | |
Features | Auto Restart, Status Flag | |
Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | |
Operating Temperature | -40°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |
Supplier Device Package | PPAK | |

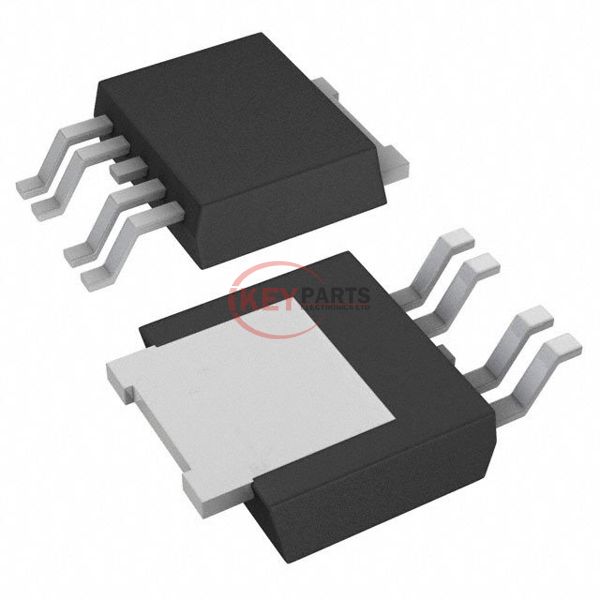

Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
We can supply VN820PT, use the request quote form to request VN820PT pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number VN820PT. The price and lead time for VN820PT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# VN820PT. We look forward to working with you to establish long-term relations of cooperation.
![]() |
