PI5PD2561ZEE

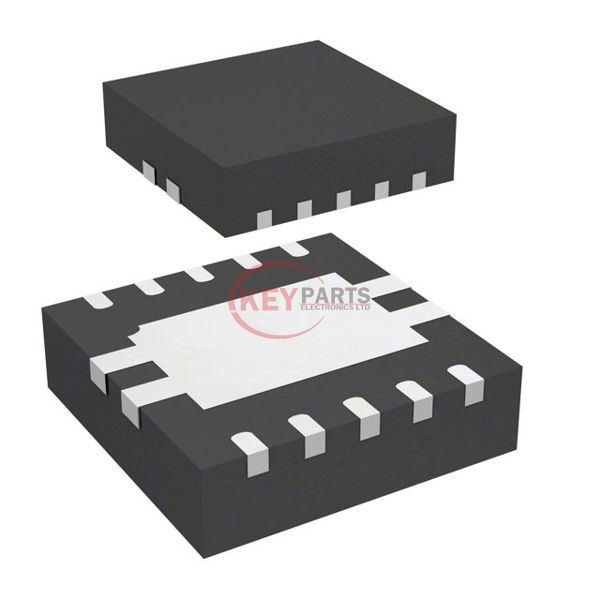

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) PI5PD2561ZEE

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
PI5PD2561ZEE
Description
IC PWR SWITCH N/P-CH 1:2 10TDFN
Catalog
PMIC - Power Distribution Switches, Load Drivers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PI5PD2561ZEE PDF
PI5PD2561ZEE Tech Specifications
Series-
PackageTube
Part StatusObsolete
Switch TypeUSB Switch
Number of Outputs2
Ratio - Input:Output1:2
Output ConfigurationHigh Side
Output TypeN/P-Channel
InterfaceOn/Off
Voltage - Load2.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)2.5V ~ 5.5V
Current - Output (Max)2.5A
Rds On (Typ)44mOhm
Input TypeNon-Inverting
FeaturesStatus Flag
Fault ProtectionCurrent Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device Package10-TDFN (3x3)
Package / Case10-VFDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply PI5PD2561ZEE, use the request quote form to request PI5PD2561ZEE pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PI5PD2561ZEE. The price and lead time for PI5PD2561ZEE depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PI5PD2561ZEE. We look forward to working with you to establish long-term relations of cooperation.
