VN820SPTR-E

Enlarger

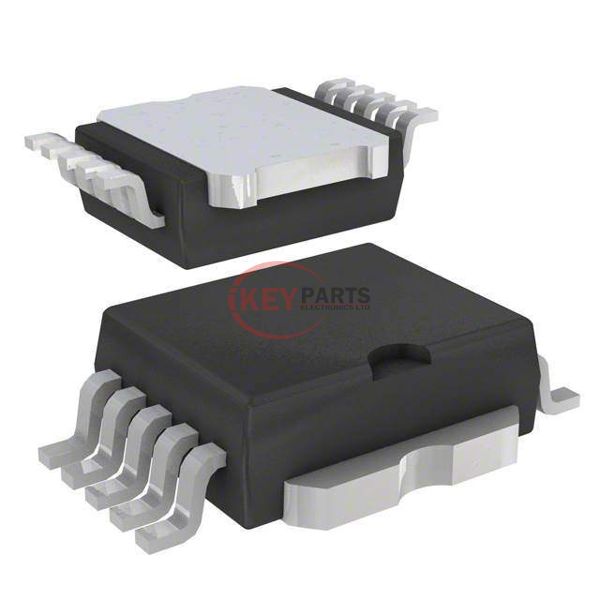

Lmages are for reference only See Product Specitications

STMicroelectronics VN820SPTR-E

Manufacturer :
STMicroelectronics
Mfr. Part # :
VN820SPTR-E
Description
IC PWR DRIVER N-CHAN 1:1 PWRSO10
Catalog
PMIC - Power Distribution Switches, Load Drivers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
VN820SPTR-E PDF
In Stock
413
VN820SPTR-E Tech Specifications
SeriesVIPower™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load5.5V ~ 36V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)9A
Rds On (Typ)40mOhm (Max)
Input TypeNon-Inverting
FeaturesAuto Restart, Status Flag
Fault ProtectionCurrent Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package10-PowerSO
Package / CasePowerSO-10 Exposed Bottom Pad
Request Quote Now
Request Quote Now

We can supply VN820SPTR-E, use the request quote form to request VN820SPTR-E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number VN820SPTR-E. The price and lead time for VN820SPTR-E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# VN820SPTR-E. We look forward to working with you to establish long-term relations of cooperation.
