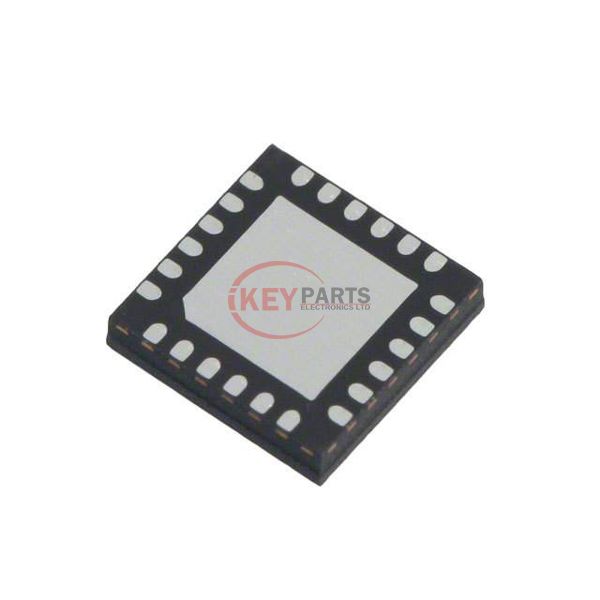

MC15XS3400CPNAR2

Enlarger

Lmages are for reference only See Product Specitications

NXP Semiconductors MC15XS3400CPNAR2

Manufacturer :
NXP Semiconductors
Mfr. Part # :
MC15XS3400CPNAR2
Description
IC PWR SWITCH N-CHAN 1:1 24PQFN
Catalog
PMIC - Power Distribution Switches, Load Drivers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MC15XS3400CPNAR2 PDF
In Stock
465
MC15XS3400CPNAR2 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Switch TypeGeneral Purpose
Number of Outputs4
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceSPI
Voltage - Load6V ~ 20V
Voltage - Supply (Vcc/Vdd)3V ~ 5.5V
Current - Output (Max)6A
Rds On (Typ)15mOhm
Input Type-
FeaturesInternal PWM, Slew Rate Controlled, Watchdog Timer
Fault ProtectionCurrent Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package24-PQFN (12x12)
Package / Case24-PowerQFN
Request Quote Now
Request Quote Now

We can supply MC15XS3400CPNAR2, use the request quote form to request MC15XS3400CPNAR2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MC15XS3400CPNAR2. The price and lead time for MC15XS3400CPNAR2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MC15XS3400CPNAR2. We look forward to working with you to establish long-term relations of cooperation.
