Series | - | |
Package | Tape & Reel (TR) | |
Part Status | Obsolete | |
Switch Circuit | SPDT | |
Multiplexer/Demultiplexer Circuit | 2:1 | |
Number of Circuits | 2 | |
On-State Resistance (Max) | 500mOhm | |
Channel-to-Channel Matching (ΔRon) | 100mOhm | |
Voltage - Supply, Single (V+) | 1.65V ~ 4.3V | |
Voltage - Supply, Dual (V±) | - | |
Switch Time (Ton, Toff) (Max) | 55ns, 30ns | |
-3db Bandwidth | 55MHz | |
Charge Injection | 49pC | |
Channel Capacitance (CS(off), CD(off)) | 5pF | |
Current - Leakage (IS(off)) (Max) | 20nA | |
Crosstalk | -72dB @ 100kHz | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |

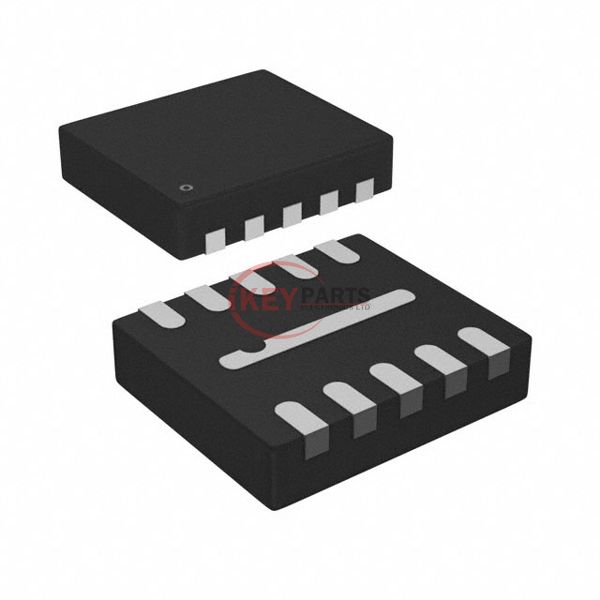

Package / Case | 10-UFDFN Exposed Pad | |
Supplier Device Package | 10-DFN (2.3x2.0) |
We can supply STG3684ADTR, use the request quote form to request STG3684ADTR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STG3684ADTR. The price and lead time for STG3684ADTR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STG3684ADTR. We look forward to working with you to establish long-term relations of cooperation.
![]() |
