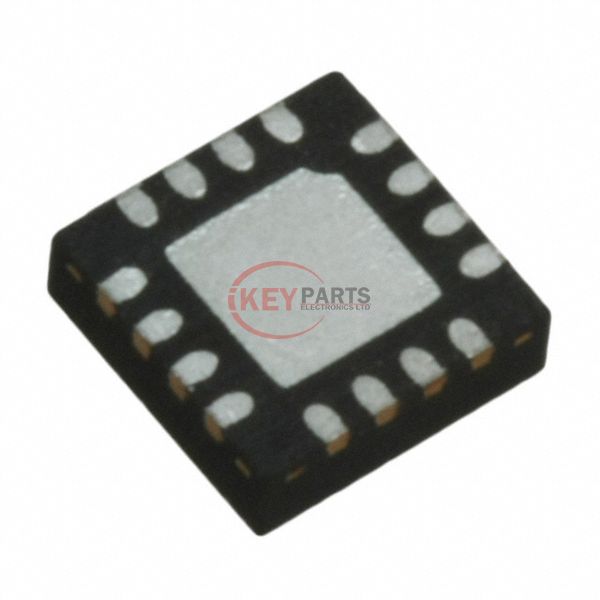

STG3699AQTR

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STG3699AQTR

Manufacturer :
STMicroelectronics
Mfr. Part # :
STG3699AQTR
Description
IC SWITCH QUAD SPDT 16QFN
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STG3699AQTR PDF
In Stock
944
STG3699AQTR Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits4
On-State Resistance (Max)450mOhm
Channel-to-Channel Matching (ΔRon)60mOhm
Voltage - Supply, Single (V+)1.65V ~ 4.3V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)55ns, 30ns
-3db Bandwidth50MHz
Charge Injection35pC
Channel Capacitance (CS(off), CD(off))5pF
Current - Leakage (IS(off)) (Max)20nA
Crosstalk-54dB @ 100kHz
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-VFQFN Exposed Pad
Supplier Device Package16-QFN (3x3)
Request Quote Now
Request Quote Now

We can supply STG3699AQTR, use the request quote form to request STG3699AQTR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STG3699AQTR. The price and lead time for STG3699AQTR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STG3699AQTR. We look forward to working with you to establish long-term relations of cooperation.
