MAX4519EPD

Enlarger

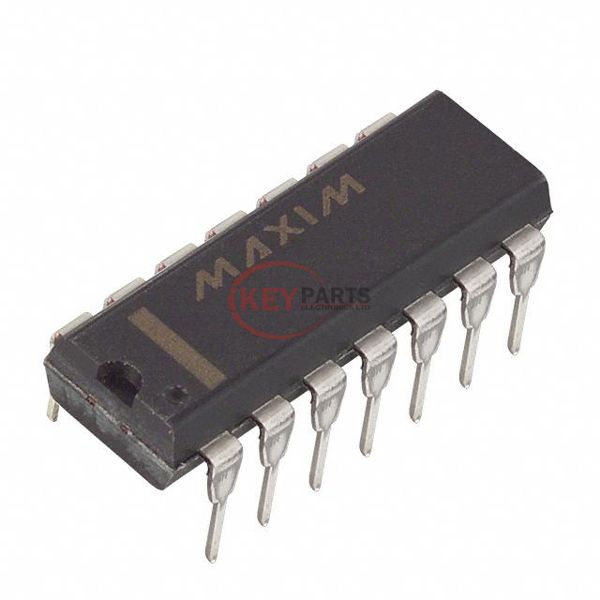

Lmages are for reference only See Product Specitications

Maxim Integrated MAX4519EPD

Manufacturer :
Maxim Integrated
Mfr. Part # :
MAX4519EPD
Description
IC MULTIPLEXER 2X2 14DIP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MAX4519EPD PDF
In Stock
785
MAX4519EPD Tech Specifications
Series-
PackageTube
Part StatusObsolete
Switch CircuitDPST - NO
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits2
On-State Resistance (Max)100Ohm
Channel-to-Channel Matching (ΔRon)4Ohm (Max)
Voltage - Supply, Single (V+)2V ~ 15V
Voltage - Supply, Dual (V±)±2.7V ~ 8V
Switch Time (Ton, Toff) (Max)150ns, 150ns
-3db Bandwidth-
Charge Injection5pC (Max)
Channel Capacitance (CS(off), CD(off))5pF, 10pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-92dB @ 100kHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / Case14-DIP (0.300", 7.62mm)
Supplier Device Package14-PDIP
Request Quote Now
Request Quote Now

We can supply MAX4519EPD, use the request quote form to request MAX4519EPD pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MAX4519EPD. The price and lead time for MAX4519EPD depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MAX4519EPD. We look forward to working with you to establish long-term relations of cooperation.
