DG309BDJ

Enlarger

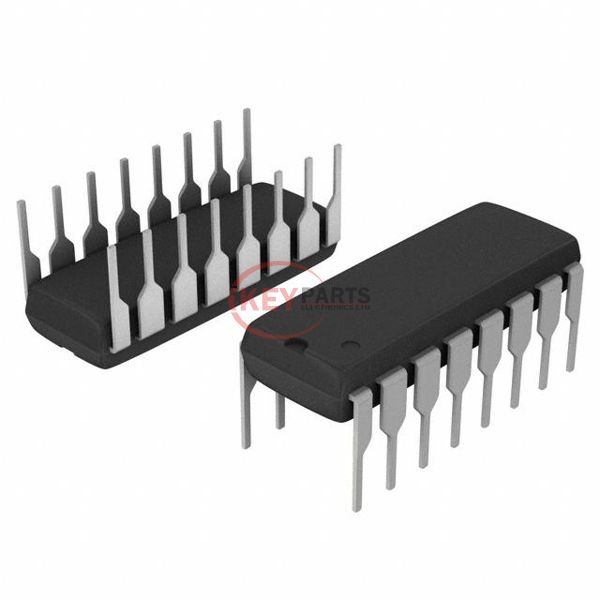

Lmages are for reference only See Product Specitications

Vishay / Siliconix DG309BDJ

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
DG309BDJ
Description
IC SWITCH QUAD SPST 16DIP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DG309BDJ PDF
In Stock
591
DG309BDJ Tech Specifications
Series-
PackageTube
Part StatusObsolete
Switch CircuitSPST - NC
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)85Ohm
Channel-to-Channel Matching (ΔRon)1.7Ohm
Voltage - Supply, Single (V+)4V ~ 44V
Voltage - Supply, Dual (V±)±4V ~ 22V
Switch Time (Ton, Toff) (Max)200ns, 150ns
-3db Bandwidth-
Charge Injection1pC
Channel Capacitance (CS(off), CD(off))5pF, 5pF
Current - Leakage (IS(off)) (Max)500pA
Crosstalk-95dB @ 100kHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm)
Supplier Device Package16-PDIP
Request Quote Now
Request Quote Now

We can supply DG309BDJ, use the request quote form to request DG309BDJ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DG309BDJ. The price and lead time for DG309BDJ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DG309BDJ. We look forward to working with you to establish long-term relations of cooperation.
