ADG715BRU-REEL7

Enlarger

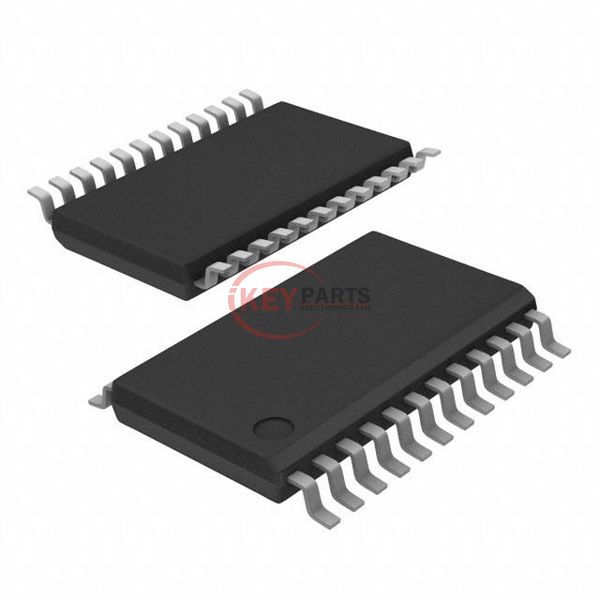

Lmages are for reference only See Product Specitications

Linear Technology (Analog Devices, Inc.) ADG715BRU-REEL7

Manufacturer :
Linear Technology (Analog Devices, Inc.)
Mfr. Part # :
ADG715BRU-REEL7
Description
IC SWITCH OCTAL SPST 24TSSOP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ADG715BRU-REEL7 PDF
In Stock
294
ADG715BRU-REEL7 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits8
On-State Resistance (Max)4.5Ohm
Channel-to-Channel Matching (ΔRon)-
Voltage - Supply, Single (V+)2.7V ~ 5.5V
Voltage - Supply, Dual (V±)±2.5V
Switch Time (Ton, Toff) (Max)20ns, 8ns (Typ)
-3db Bandwidth155MHz
Charge Injection3pC
Channel Capacitance (CS(off), CD(off))11pF, 11pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-90dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package24-TSSOP
Request Quote Now
Request Quote Now

We can supply ADG715BRU-REEL7, use the request quote form to request ADG715BRU-REEL7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ADG715BRU-REEL7. The price and lead time for ADG715BRU-REEL7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ADG715BRU-REEL7. We look forward to working with you to establish long-term relations of cooperation.
