RN1105CT(TPL3)

Enlarger

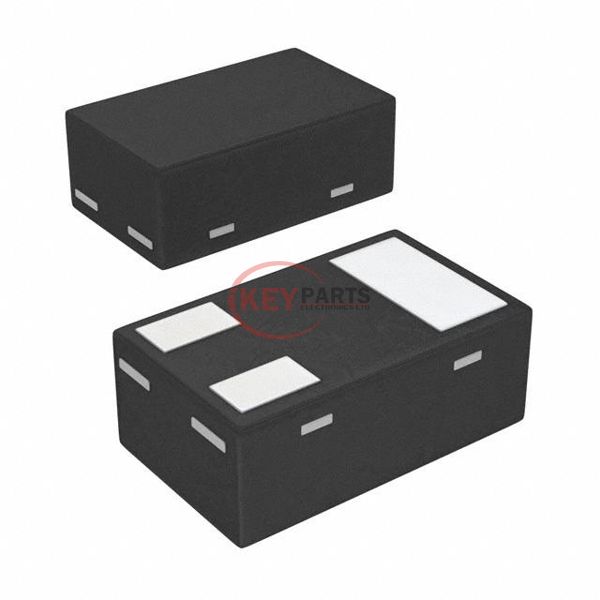

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation RN1105CT(TPL3)

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
RN1105CT(TPL3)
Description
TRANS PREBIAS NPN 20V 0.05A CST3
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RN1105CT(TPL3) PDF
In Stock
944
RN1105CT(TPL3) Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)50 mA
Voltage - Collector Emitter Breakdown (Max)20 V
Resistor - Base (R1)2.2 kOhms
Resistor - Emitter Base (R2)47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce120 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic150mV @ 250µA, 5mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max50 mW
Mounting TypeSurface Mount
Package / CaseSC-101, SOT-883
Supplier Device PackageCST3
Request Quote Now
Request Quote Now

We can supply RN1105CT(TPL3), use the request quote form to request RN1105CT(TPL3) pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RN1105CT(TPL3). The price and lead time for RN1105CT(TPL3) depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RN1105CT(TPL3). We look forward to working with you to establish long-term relations of cooperation.
