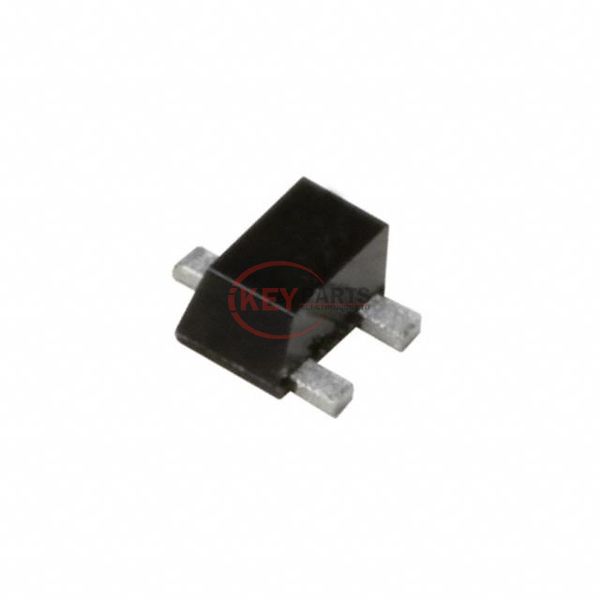

PDTC114TEF,115

Enlarger

Lmages are for reference only See Product Specitications

NXP Semiconductors PDTC114TEF,115

Manufacturer :
NXP Semiconductors
Mfr. Part # :
PDTC114TEF,115
Description
TRANS PREBIAS NPN 150MW SC89
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PDTC114TEF,115 PDF
In Stock
318
PDTC114TEF,115 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)10 kOhms
Resistor - Emitter Base (R2)-
DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 1mA, 5V
Vce Saturation (Max) @ Ib, Ic150mV @ 500µA, 10mA
Current - Collector Cutoff (Max)1µA
Frequency - Transition-
Power - Max150 mW
Mounting TypeSurface Mount
Package / CaseSC-89, SOT-490
Supplier Device PackageSC-89
Request Quote Now
Request Quote Now

We can supply PDTC114TEF,115, use the request quote form to request PDTC114TEF,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PDTC114TEF,115. The price and lead time for PDTC114TEF,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PDTC114TEF,115. We look forward to working with you to establish long-term relations of cooperation.
