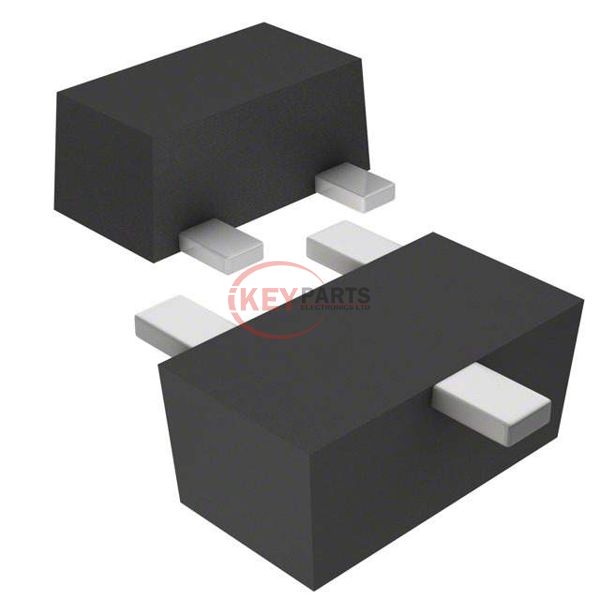

DRA9143Z0L

Enlarger

Lmages are for reference only See Product Specitications

Panasonic DRA9143Z0L

Manufacturer :
Panasonic
Mfr. Part # :
DRA9143Z0L
Description
TRANS PREBIAS PNP 125MW SSMINI3
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DRA9143Z0L PDF
In Stock
978
DRA9143Z0L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusDiscontinued at Digi-Key
Transistor TypePNP - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)4.7 kOhms
Resistor - Emitter Base (R2)47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 500µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max125 mW
Mounting TypeSurface Mount
Package / CaseSC-89, SOT-490
Supplier Device PackageSSMini3-F3-B
Request Quote Now
Request Quote Now

We can supply DRA9143Z0L, use the request quote form to request DRA9143Z0L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DRA9143Z0L. The price and lead time for DRA9143Z0L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DRA9143Z0L. We look forward to working with you to establish long-term relations of cooperation.
