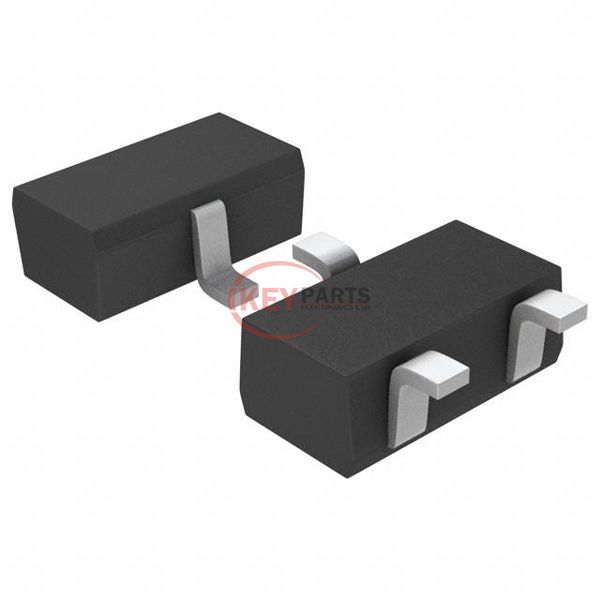

DRA3115E0L

Enlarger

Lmages are for reference only See Product Specitications

Panasonic DRA3115E0L

Manufacturer :
Panasonic
Mfr. Part # :
DRA3115E0L
Description
TRANS PREBIAS PNP 100MW SSSMINI3
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DRA3115E0L PDF
In Stock
759
DRA3115E0L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusDiscontinued at Digi-Key
Transistor TypePNP - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)100 kOhms
Resistor - Emitter Base (R2)100 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 500µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max100 mW
Mounting TypeSurface Mount
Package / CaseSOT-723
Supplier Device PackageSSSMini3-F2-B
Request Quote Now
Request Quote Now

We can supply DRA3115E0L, use the request quote form to request DRA3115E0L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DRA3115E0L. The price and lead time for DRA3115E0L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DRA3115E0L. We look forward to working with you to establish long-term relations of cooperation.
