BAW56W/ZLF

Enlarger

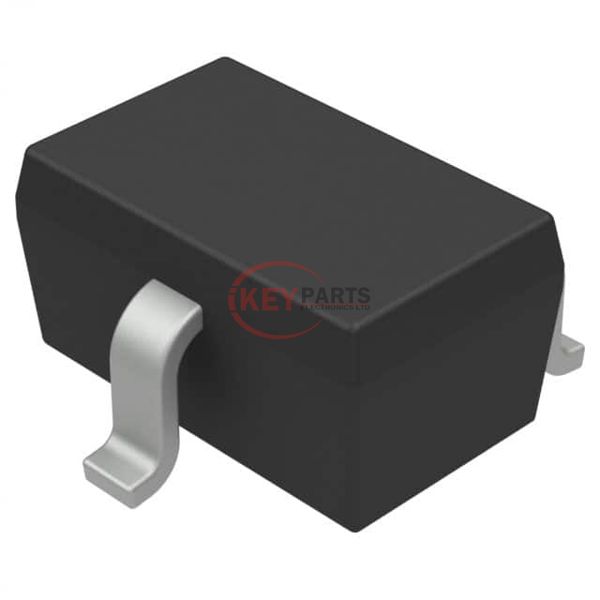

Lmages are for reference only See Product Specitications

Nexperia BAW56W/ZLF

Manufacturer :
Nexperia
Mfr. Part # :
BAW56W/ZLF
Description
DIODE ARRAY GEN PURP 90V SOT323
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAW56W/ZLF PDF
In Stock
290
BAW56W/ZLF Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Diode Configuration1 Pair Common Anode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)90 V
Current - Average Rectified (Io) (per Diode)150mA (DC)
Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)4 ns
Current - Reverse Leakage @ Vr500 nA @ 80 V
Operating Temperature - Junction150°C (Max)
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device PackageSOT-323
Request Quote Now
Request Quote Now

We can supply BAW56W/ZLF, use the request quote form to request BAW56W/ZLF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAW56W/ZLF. The price and lead time for BAW56W/ZLF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAW56W/ZLF. We look forward to working with you to establish long-term relations of cooperation.
