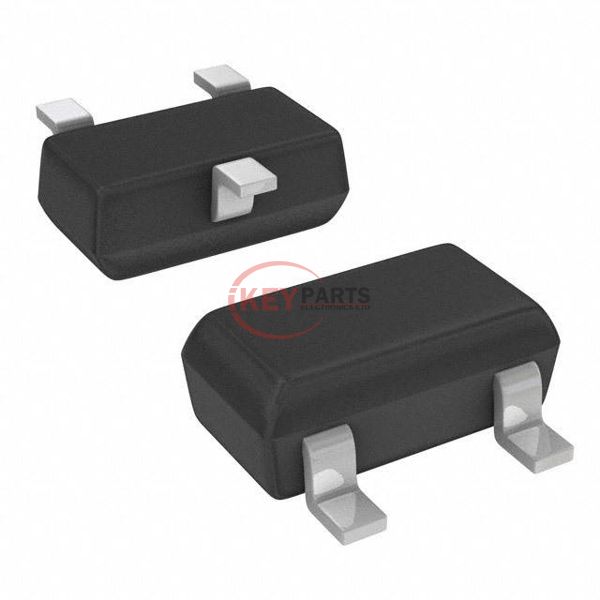

SBR05U20SN-7

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) SBR05U20SN-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
SBR05U20SN-7
Description
DIODE ARRAY SBR 20V 250MA SC59-3
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SBR05U20SN-7 PDF
In Stock
827
SBR05U20SN-7 Tech Specifications
SeriesSBR®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Diode Configuration1 Pair Common Cathode
Diode TypeSuper Barrier
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io) (per Diode)250mA
Voltage - Forward (Vf) (Max) @ If560 mV @ 500 mA
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr100 µA @ 20 V
Operating Temperature - Junction-65°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSC-59-3
Request Quote Now
Request Quote Now

We can supply SBR05U20SN-7, use the request quote form to request SBR05U20SN-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SBR05U20SN-7. The price and lead time for SBR05U20SN-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SBR05U20SN-7. We look forward to working with you to establish long-term relations of cooperation.
