BAT54SD REG

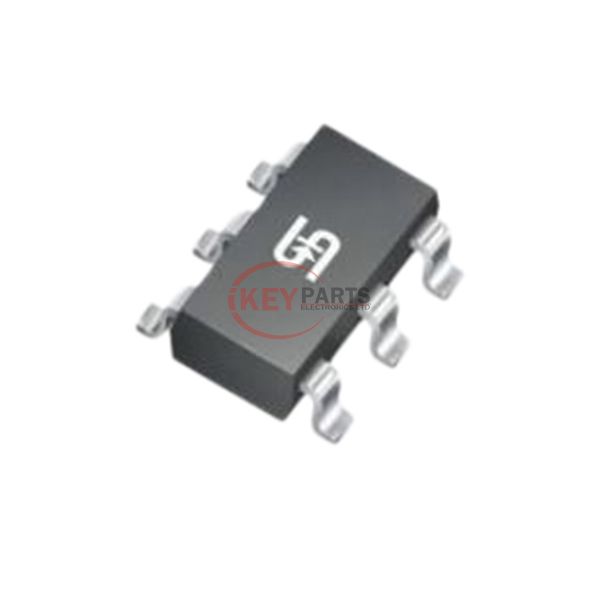

Enlarger

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) BAT54SD REG

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
BAT54SD REG
Description
DIODE ARRAY SCHOTTKY 30V SOT363
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAT54SD REG PDF
In Stock
736
BAT54SD REG Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
Diode Configuration2 Pair Series Connection
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io) (per Diode)200mA (DC)
Voltage - Forward (Vf) (Max) @ If1 V @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)5 ns
Current - Reverse Leakage @ Vr2 µA @ 25 V
Operating Temperature - Junction-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSOT-363
Request Quote Now
Request Quote Now

We can supply BAT54SD REG, use the request quote form to request BAT54SD REG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAT54SD REG. The price and lead time for BAT54SD REG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAT54SD REG. We look forward to working with you to establish long-term relations of cooperation.
