MA3S13700L

Enlarger

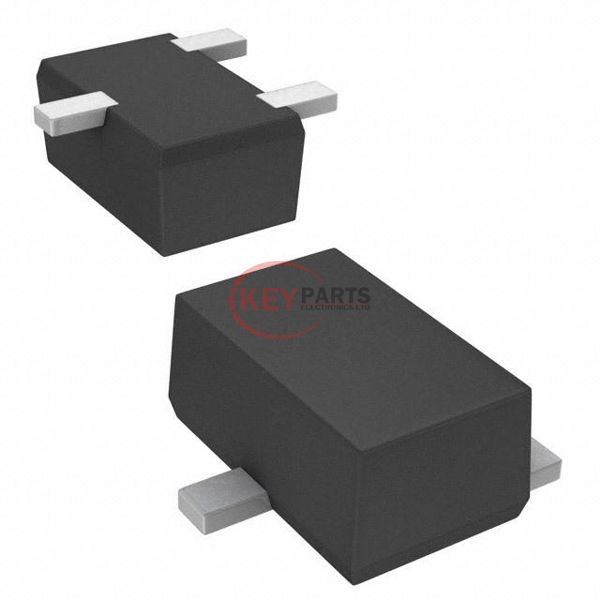

Lmages are for reference only See Product Specitications

Panasonic MA3S13700L

Manufacturer :
Panasonic
Mfr. Part # :
MA3S13700L
Description
DIODE ARRAY GP 80V 100MA SSMINI3
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MA3S13700L PDF
In Stock
871
MA3S13700L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Diode Configuration1 Pair Series Connection
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)80 V
Current - Average Rectified (Io) (per Diode)100mA (DC)
Voltage - Forward (Vf) (Max) @ If1.2 V @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)3 ns
Current - Reverse Leakage @ Vr100 nA @ 75 V
Operating Temperature - Junction150°C (Max)
Mounting TypeSurface Mount
Package / CaseSC-89, SOT-490
Supplier Device PackageSSMini3-F2
Request Quote Now
Request Quote Now

We can supply MA3S13700L, use the request quote form to request MA3S13700L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MA3S13700L. The price and lead time for MA3S13700L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MA3S13700L. We look forward to working with you to establish long-term relations of cooperation.
