BAW56S/DG/B2,115

Enlarger

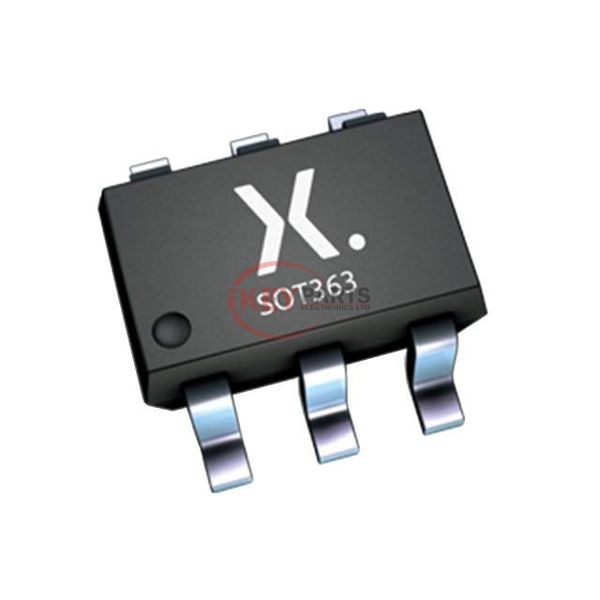

Lmages are for reference only See Product Specitications

Nexperia BAW56S/DG/B2,115

Manufacturer :
Nexperia
Mfr. Part # :
BAW56S/DG/B2,115
Description
DIODE ARRAY GP 90V 250MA SOT363
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAW56S/DG/B2,115 PDF
In Stock
956
BAW56S/DG/B2,115 Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)
Part StatusObsolete
Diode Configuration2 Pair Common Anode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)90 V
Current - Average Rectified (Io) (per Diode)250mA (DC)
Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)4 ns
Current - Reverse Leakage @ Vr500 nA @ 80 V
Operating Temperature - Junction150°C (Max)
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSOT-363
Request Quote Now
Request Quote Now

We can supply BAW56S/DG/B2,115, use the request quote form to request BAW56S/DG/B2,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAW56S/DG/B2,115. The price and lead time for BAW56S/DG/B2,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAW56S/DG/B2,115. We look forward to working with you to establish long-term relations of cooperation.
