BAT54-09P6FILM

Enlarger

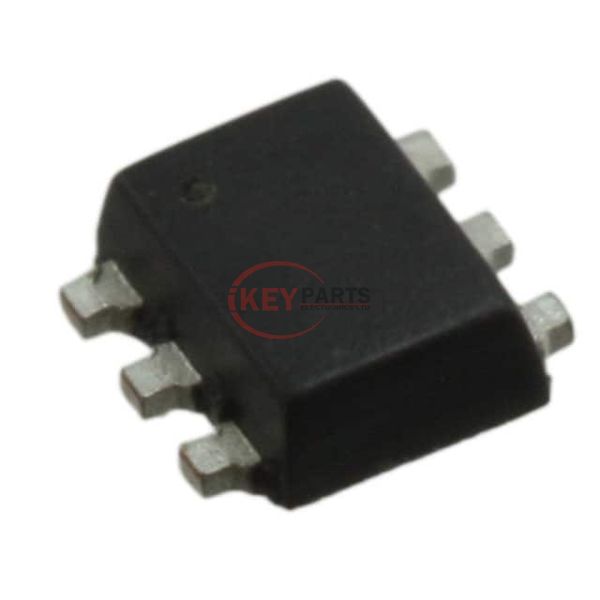

Lmages are for reference only See Product Specitications

STMicroelectronics BAT54-09P6FILM

Manufacturer :
STMicroelectronics
Mfr. Part # :
BAT54-09P6FILM
Description
DIODE ARRAY SCHOTTKY 40V SOT666
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAT54-09P6FILM PDF
In Stock
236
BAT54-09P6FILM Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Diode Configuration2 Independent
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)40 V
Current - Average Rectified (Io) (per Diode)300mA (DC)
Voltage - Forward (Vf) (Max) @ If900 mV @ 100 mA
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)5 ns
Current - Reverse Leakage @ Vr1 µA @ 30 V
Operating Temperature - Junction-40°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseSOT-563, SOT-666
Supplier Device PackageSOT-666
Request Quote Now
Request Quote Now

We can supply BAT54-09P6FILM, use the request quote form to request BAT54-09P6FILM pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAT54-09P6FILM. The price and lead time for BAT54-09P6FILM depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAT54-09P6FILM. We look forward to working with you to establish long-term relations of cooperation.
