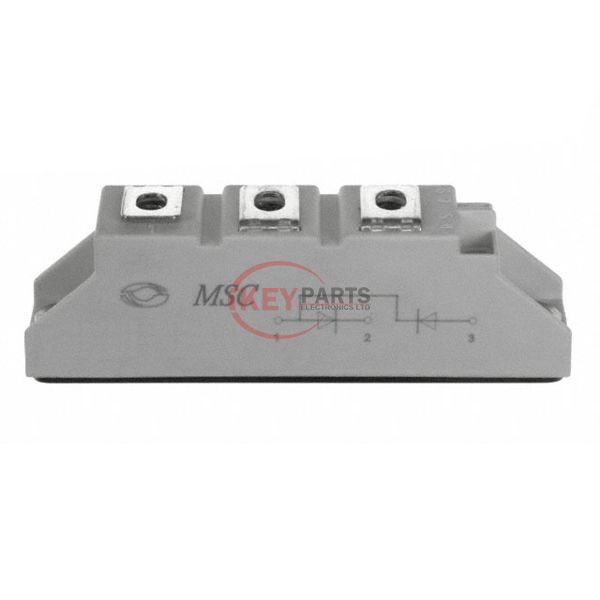

MSCD36-12

Enlarger

Lmages are for reference only See Product Specitications

Microsemi MSCD36-12

Manufacturer :
Microsemi
Mfr. Part # :
MSCD36-12
Description
DIODE MODULE 1.2KV 36A D1
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MSCD36-12 PDF
MSCD36-12 Tech Specifications
Series-
PackageBulk
Part StatusObsolete
Diode Configuration1 Pair Series Connection
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)1200 V
Current - Average Rectified (Io) (per Diode)36A
Voltage - Forward (Vf) (Max) @ If1.25 V @ 100 A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr5 mA @ 1200 V
Operating Temperature - Junction-
Mounting TypeChassis Mount
Package / CaseD1
Supplier Device PackageD1
Request Quote Now
Request Quote Now

We can supply MSCD36-12, use the request quote form to request MSCD36-12 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MSCD36-12. The price and lead time for MSCD36-12 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MSCD36-12. We look forward to working with you to establish long-term relations of cooperation.
