Series | Automotive, AEC-Q101 | |
Package | Tape & Reel (TR) | |
Part Status | Obsolete | |
Diode Configuration | 1 Pair Series Connection | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 30 V | |
Current - Average Rectified (Io) (per Diode) | 200mA (DC) | |
Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA | |
Speed | Small Signal =< 200mA (Io), Any Speed | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 2 µA @ 25 V | |
Operating Temperature - Junction | 150°C (Max) | |
Mounting Type | Surface Mount | |

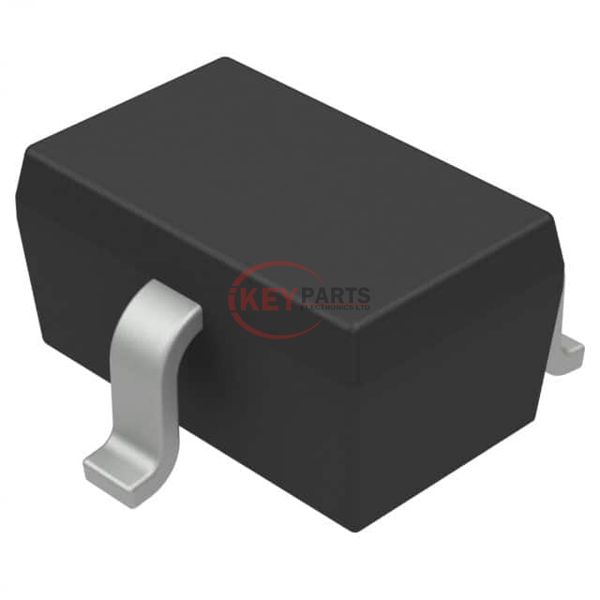

Package / Case | SC-70, SOT-323 | |
Supplier Device Package | SC-70 |
We can supply 1PS70SB14/ZLF, use the request quote form to request 1PS70SB14/ZLF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1PS70SB14/ZLF. The price and lead time for 1PS70SB14/ZLF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1PS70SB14/ZLF. We look forward to working with you to establish long-term relations of cooperation.
![]() |
