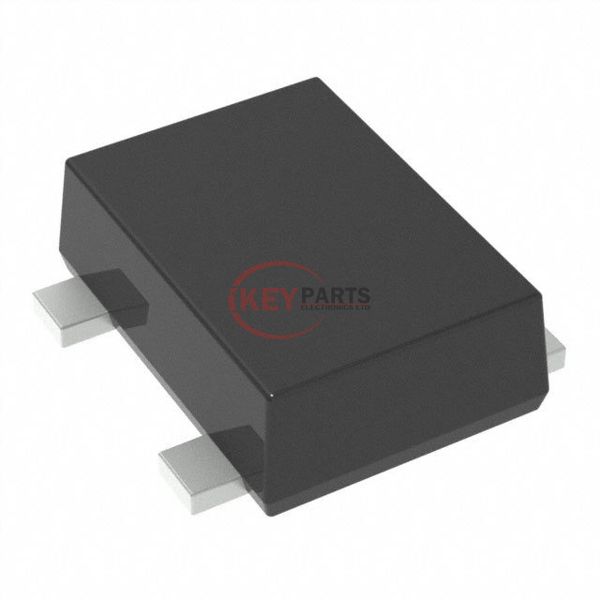

MA4SD1000L

Enlarger

Lmages are for reference only See Product Specitications

Panasonic MA4SD1000L

Manufacturer :
Panasonic
Mfr. Part # :
MA4SD1000L
Description
DIODE ARRAY SCHOTTKY 20V SSMINI4
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MA4SD1000L PDF
MA4SD1000L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Diode Configuration2 Independent
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io) (per Diode)200mA
Voltage - Forward (Vf) (Max) @ If470 mV @ 200 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)3 ns
Current - Reverse Leakage @ Vr20 µA @ 10 V
Operating Temperature - Junction125°C (Max)
Mounting TypeSurface Mount
Package / Case4-SMD, Flat Leads
Supplier Device PackageSSMini4-F1
Request Quote Now
Request Quote Now

We can supply MA4SD1000L, use the request quote form to request MA4SD1000L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MA4SD1000L. The price and lead time for MA4SD1000L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MA4SD1000L. We look forward to working with you to establish long-term relations of cooperation.
