30CPH03

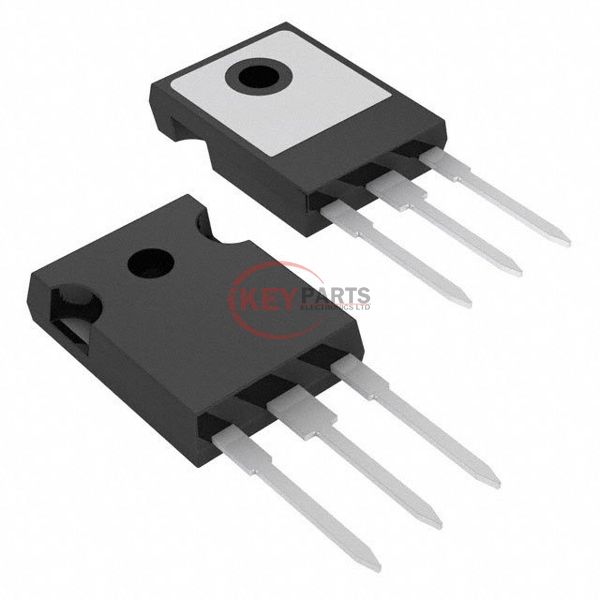

Enlarger

Lmages are for reference only See Product Specitications

Vishay General Semiconductor – Diodes Division 30CPH03

Manufacturer :
Vishay General Semiconductor – Diodes Division
Mfr. Part # :
30CPH03
Description
DIODE ARRAY GP 300V 15A TO247AC
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
30CPH03 PDF
30CPH03 Tech Specifications
SeriesFRED Pt®
PackageTube
Part StatusObsolete
Diode Configuration1 Pair Common Cathode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)300 V
Current - Average Rectified (Io) (per Diode)15A
Voltage - Forward (Vf) (Max) @ If1.25 V @ 15 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)40 ns
Current - Reverse Leakage @ Vr40 µA @ 300 V
Operating Temperature - Junction-65°C ~ 175°C
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247AC
Request Quote Now
Request Quote Now

We can supply 30CPH03, use the request quote form to request 30CPH03 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 30CPH03. The price and lead time for 30CPH03 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 30CPH03. We look forward to working with you to establish long-term relations of cooperation.
