DB3J314F0L

Enlarger

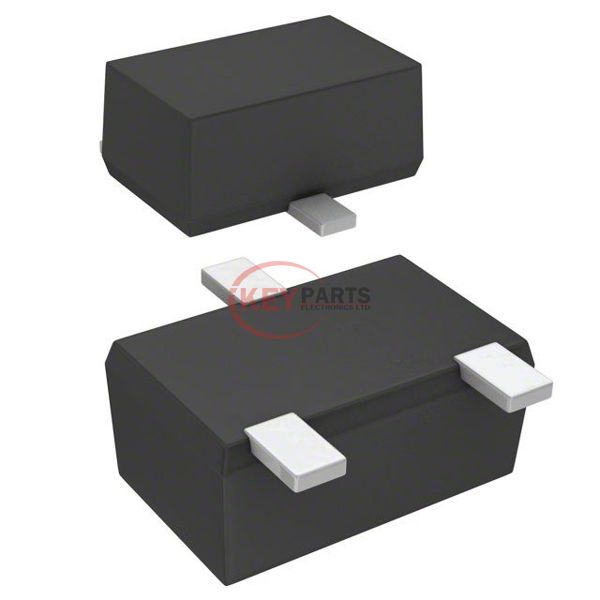

Lmages are for reference only See Product Specitications

Panasonic DB3J314F0L

Manufacturer :
Panasonic
Mfr. Part # :
DB3J314F0L
Description
DIODE ARRAY SCHOTTKY 30V SMINI3
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DB3J314F0L PDF
DB3J314F0L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusDiscontinued at Digi-Key
Diode Configuration1 Pair Series Connection
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io) (per Diode)30mA (DC)
Voltage - Forward (Vf) (Max) @ If1 V @ 30 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)1 ns
Current - Reverse Leakage @ Vr300 nA @ 30 V
Operating Temperature - Junction125°C (Max)
Mounting TypeSurface Mount
Package / CaseSC-85
Supplier Device PackageSMini3-F2-B
Request Quote Now
Request Quote Now

We can supply DB3J314F0L, use the request quote form to request DB3J314F0L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DB3J314F0L. The price and lead time for DB3J314F0L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DB3J314F0L. We look forward to working with you to establish long-term relations of cooperation.
