DB3S314J0L

Enlarger

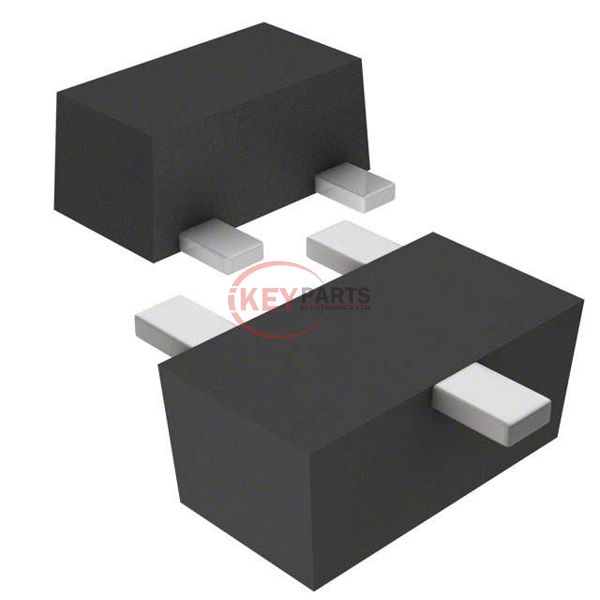

Lmages are for reference only See Product Specitications

Panasonic DB3S314J0L

Manufacturer :
Panasonic
Mfr. Part # :
DB3S314J0L
Description
DIODE ARRAY SCHOTTKY 30V SSMINI3
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DB3S314J0L PDF
DB3S314J0L Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusDiscontinued at Digi-Key
Diode Configuration1 Pair Common Anode
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io) (per Diode)30mA (DC)
Voltage - Forward (Vf) (Max) @ If1 V @ 30 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)1 ns
Current - Reverse Leakage @ Vr300 nA @ 30 V
Operating Temperature - Junction125°C (Max)
Mounting TypeSurface Mount
Package / CaseSC-89, SOT-490
Supplier Device PackageSSMini3-F3-B
Request Quote Now
Request Quote Now

We can supply DB3S314J0L, use the request quote form to request DB3S314J0L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DB3S314J0L. The price and lead time for DB3S314J0L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DB3S314J0L. We look forward to working with you to establish long-term relations of cooperation.
