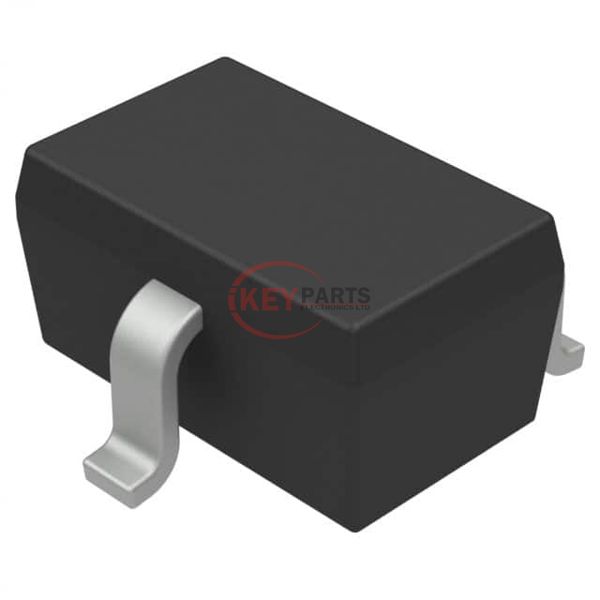

BAV70W/SN/8F

Enlarger

Lmages are for reference only See Product Specitications

Nexperia BAV70W/SN/8F

Manufacturer :
Nexperia
Mfr. Part # :
BAV70W/SN/8F
Description
DIODE ARRAY GP 100V 175MA SC70
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAV70W/SN/8F PDF
BAV70W/SN/8F Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)
Part StatusObsolete
Diode Configuration1 Pair Common Cathode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)100 V
Current - Average Rectified (Io) (per Diode)175mA (DC)
Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)4 ns
Current - Reverse Leakage @ Vr500 nA @ 80 V
Operating Temperature - Junction150°C (Max)
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device PackageSOT-323
Request Quote Now
Request Quote Now

We can supply BAV70W/SN/8F, use the request quote form to request BAV70W/SN/8F pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAV70W/SN/8F. The price and lead time for BAV70W/SN/8F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAV70W/SN/8F. We look forward to working with you to establish long-term relations of cooperation.
