STPS15M80CG-TR

Enlarger

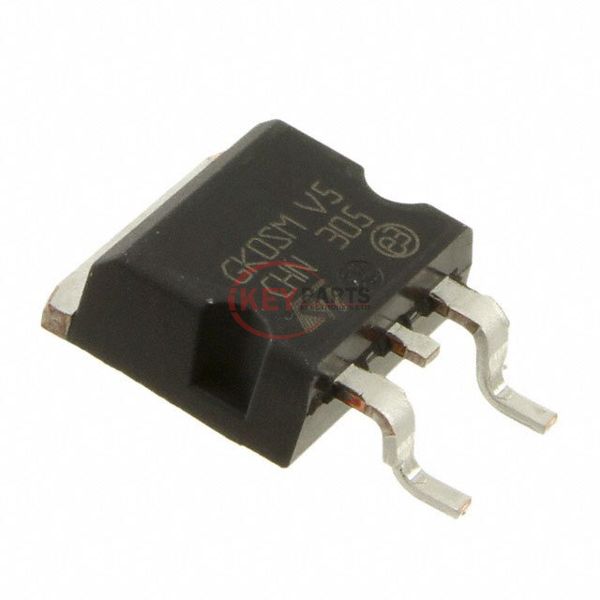

Lmages are for reference only See Product Specitications

STMicroelectronics STPS15M80CG-TR

Manufacturer :
STMicroelectronics
Mfr. Part # :
STPS15M80CG-TR
Description
DIODE ARRAY SCHOTTKY 80V D2PAK
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STPS15M80CG-TR PDF
STPS15M80CG-TR Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Diode Configuration1 Pair Common Cathode
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)80 V
Current - Average Rectified (Io) (per Diode)7.5A
Voltage - Forward (Vf) (Max) @ If725 mV @ 7.5 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr25 µA @ 80 V
Operating Temperature - Junction175°C (Max)
Mounting TypeSurface Mount
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device PackageD²PAK
Request Quote Now
Request Quote Now

We can supply STPS15M80CG-TR, use the request quote form to request STPS15M80CG-TR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STPS15M80CG-TR. The price and lead time for STPS15M80CG-TR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STPS15M80CG-TR. We look forward to working with you to establish long-term relations of cooperation.
