NSR15SDW1T2G

Enlarger

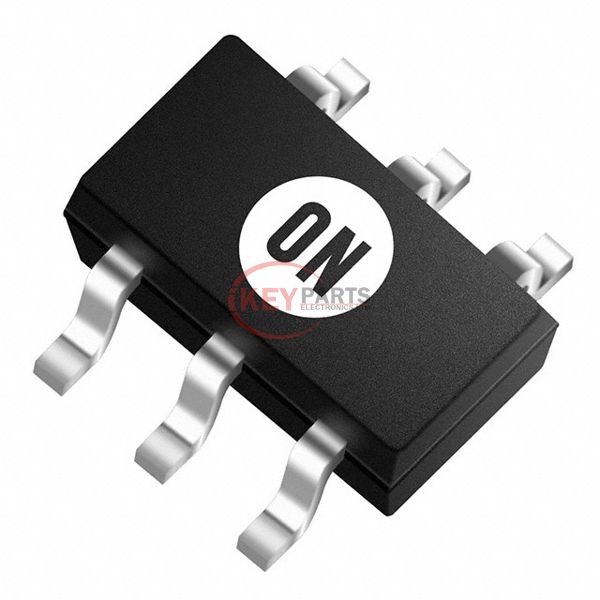

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NSR15SDW1T2G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NSR15SDW1T2G
Description
DIODE ARRAY SCHOTTKY 15V SC88
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NSR15SDW1T2G PDF
In Stock
510
NSR15SDW1T2G Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Diode Configuration2 Independent
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)15 V
Current - Average Rectified (Io) (per Diode)30mA (DC)
Voltage - Forward (Vf) (Max) @ If680 mV @ 10 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr50 nA @ 1 V
Operating Temperature - Junction-65°C ~ 150°C
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSC-88/SC70-6/SOT-363
Request Quote Now
Request Quote Now

We can supply NSR15SDW1T2G, use the request quote form to request NSR15SDW1T2G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NSR15SDW1T2G. The price and lead time for NSR15SDW1T2G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NSR15SDW1T2G. We look forward to working with you to establish long-term relations of cooperation.
