BAT54CW/6/ZLX

Enlarger

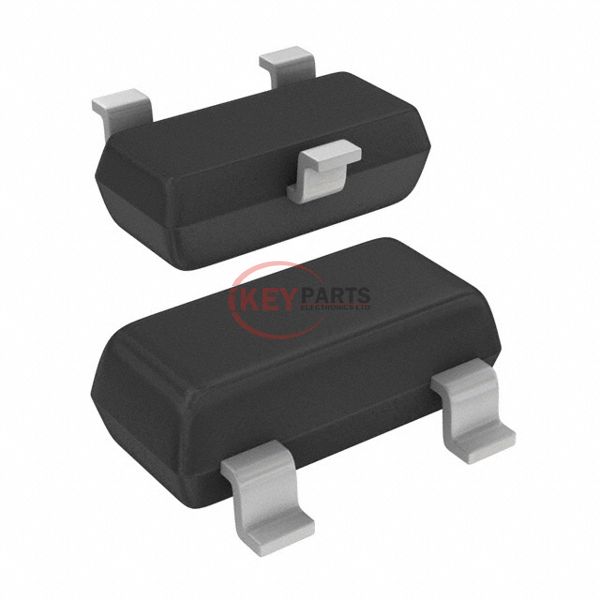

Lmages are for reference only See Product Specitications

NXP Semiconductors BAT54CW/6/ZLX

Manufacturer :
NXP Semiconductors
Mfr. Part # :
BAT54CW/6/ZLX
Description
DIODE SCHOTTKY 30V 200MA SOT323
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAT54CW/6/ZLX PDF
In Stock
945
BAT54CW/6/ZLX Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Diode Configuration-
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io) (per Diode)-
Voltage - Forward (Vf) (Max) @ If800 mV @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)5 ns
Current - Reverse Leakage @ Vr2 µA @ 25 V
Operating Temperature - Junction150°C (Max)
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device PackageSOT-323-3
Request Quote Now
Request Quote Now

We can supply BAT54CW/6/ZLX, use the request quote form to request BAT54CW/6/ZLX pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAT54CW/6/ZLX. The price and lead time for BAT54CW/6/ZLX depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAT54CW/6/ZLX. We look forward to working with you to establish long-term relations of cooperation.
