ECO-S2WP560BA

Enlarger

Lmages are for reference only See Product Specitications

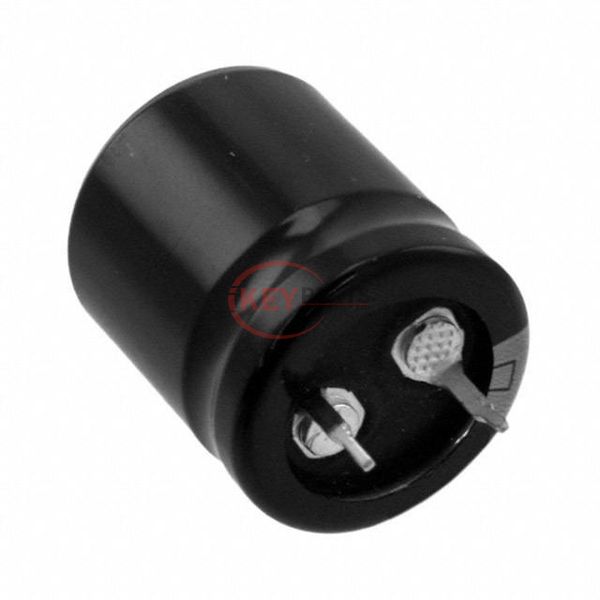

Panasonic ECO-S2WP560BA

Manufacturer :
Panasonic
Mfr. Part # :
ECO-S2WP560BA
Description
CAP ALUM 56UF 20% 450V SNAP
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ECO-S2WP560BA PDF
In Stock
646
ECO-S2WP560BA Tech Specifications
SeriesTS-UP
PackageBulk
Part StatusObsolete
Capacitance56 µF
Tolerance±20%
Voltage - Rated450 V
ESR (Equivalent Series Resistance)2.96Ohm @ 120Hz
Lifetime @ Temp.3000 Hrs @ 85°C
Operating Temperature-25°C ~ 85°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency700 mA @ 120 Hz
Ripple Current @ High Frequency980 mA @ 100 kHz
Impedance-
Lead Spacing0.394" (10.00mm)
Size / Dimension0.866" Dia (22.00mm)
Height - Seated (Max)0.984" (25.00mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can - Snap-In
Request Quote Now
Request Quote Now

We can supply ECO-S2WP560BA, use the request quote form to request ECO-S2WP560BA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ECO-S2WP560BA. The price and lead time for ECO-S2WP560BA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ECO-S2WP560BA. We look forward to working with you to establish long-term relations of cooperation.
