SH220M100ST

Enlarger

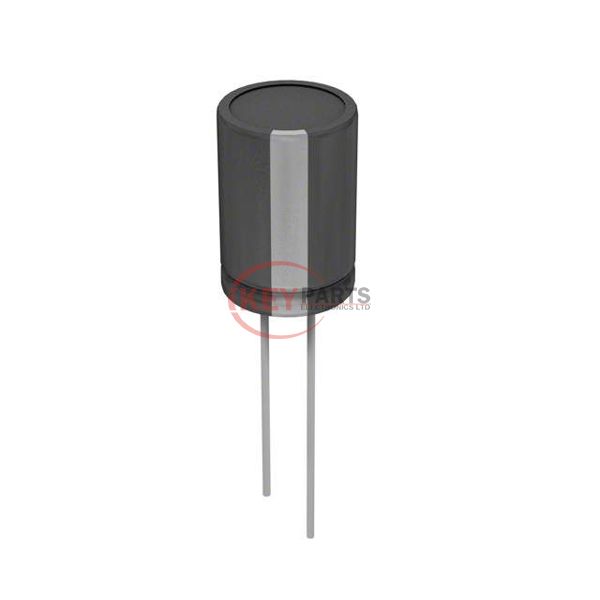

Lmages are for reference only See Product Specitications

Cornell Dubilier Electronics SH220M100ST

Manufacturer :
Cornell Dubilier Electronics
Mfr. Part # :
SH220M100ST
Description
CAP ALUM 22UF 20% 100V RADIAL
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SH220M100ST PDF
In Stock
920
SH220M100ST Tech Specifications
SeriesSH
PackageBulk
Part StatusObsolete
Capacitance22 µF
Tolerance±20%
Voltage - Rated100 V
ESR (Equivalent Series Resistance)6.03Ohm @ 120Hz
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-40°C ~ 105°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency115 mA @ 120 Hz
Ripple Current @ High Frequency161 mA @ 10 kHz
Impedance-
Lead Spacing0.138" (3.50mm)
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.453" (11.50mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can
Request Quote Now
Request Quote Now

We can supply SH220M100ST, use the request quote form to request SH220M100ST pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SH220M100ST. The price and lead time for SH220M100ST depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SH220M100ST. We look forward to working with you to establish long-term relations of cooperation.
