EET-ED2G561EA

Enlarger

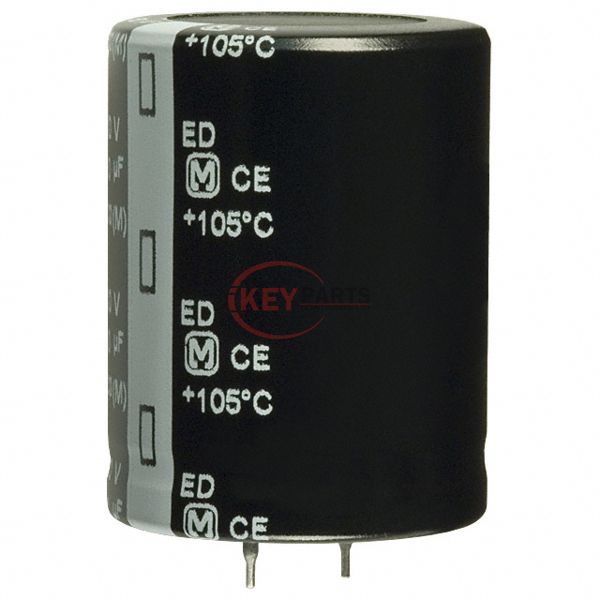

Lmages are for reference only See Product Specitications

Panasonic EET-ED2G561EA

Manufacturer :
Panasonic
Mfr. Part # :
EET-ED2G561EA
Description
CAP ALUM 560UF 20% 400V SNAP
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EET-ED2G561EA PDF
In Stock
501
EET-ED2G561EA Tech Specifications
SeriesTS-ED
PackageBulk
Part StatusObsolete
Capacitance560 µF
Tolerance±20%
Voltage - Rated400 V
ESR (Equivalent Series Resistance)237mOhm @ 120Hz
Lifetime @ Temp.3000 Hrs @ 105°C
Operating Temperature-25°C ~ 105°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency2.35 A @ 120 Hz
Ripple Current @ High Frequency3.36 A @ 100 kHz
Impedance-
Lead Spacing0.394" (10.00mm)
Size / Dimension1.378" Dia (35.00mm)
Height - Seated (Max)1.772" (45.00mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can - Snap-In
Request Quote Now
Request Quote Now

We can supply EET-ED2G561EA, use the request quote form to request EET-ED2G561EA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EET-ED2G561EA. The price and lead time for EET-ED2G561EA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EET-ED2G561EA. We look forward to working with you to establish long-term relations of cooperation.
