UWX1E560MCR1GB

Enlarger

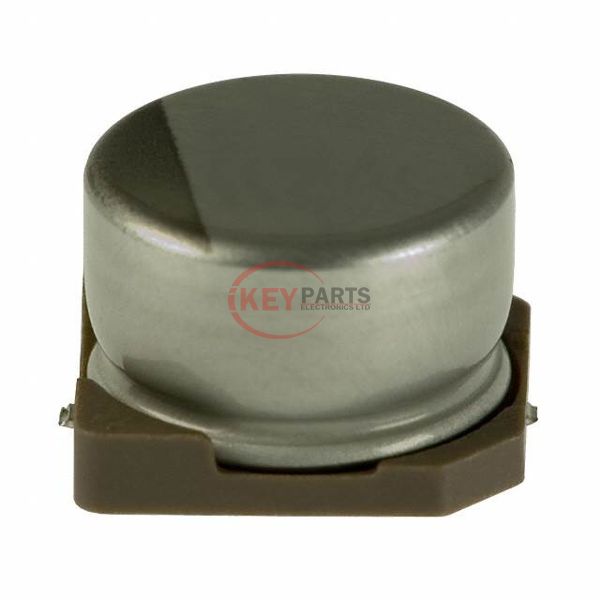

Lmages are for reference only See Product Specitications

Nichicon UWX1E560MCR1GB

Manufacturer :
Nichicon
Mfr. Part # :
UWX1E560MCR1GB
Description
CAP ALUM 56UF 20% 25V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
UWX1E560MCR1GB PDF
In Stock
501
UWX1E560MCR1GB Tech Specifications
SeriesUWX
PackageTape & Reel (TR)
Part StatusObsolete
Capacitance56 µF
Tolerance±20%
Voltage - Rated25 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 85°C
Operating Temperature-40°C ~ 85°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency76 mA @ 120 Hz
Ripple Current @ High Frequency114 mA @ 10 kHz
Impedance-
Lead Spacing-
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.213" (5.40mm)
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply UWX1E560MCR1GB, use the request quote form to request UWX1E560MCR1GB pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UWX1E560MCR1GB. The price and lead time for UWX1E560MCR1GB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UWX1E560MCR1GB. We look forward to working with you to establish long-term relations of cooperation.
