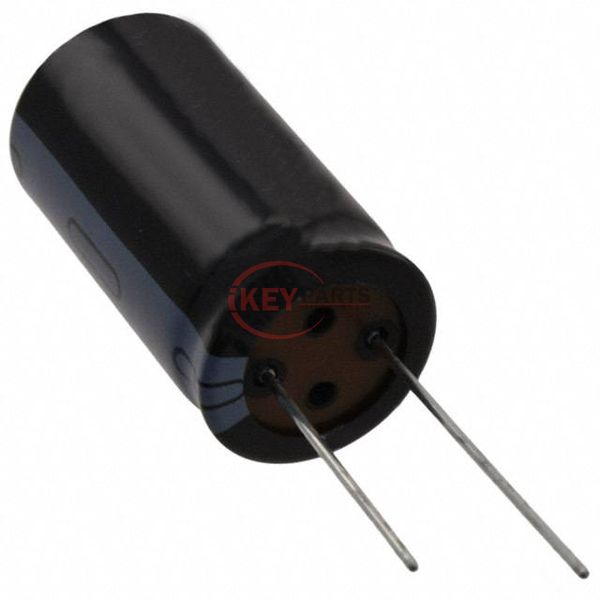

SMG160VB561M22DLL

Enlarger

Lmages are for reference only See Product Specitications

United Chemi-Con SMG160VB561M22DLL

Manufacturer :
United Chemi-Con
Mfr. Part # :
SMG160VB561M22DLL
Description
CAP ALUM 560UF 20% 160V RADIAL
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SMG160VB561M22DLL PDF
In Stock
722
SMG160VB561M22DLL Tech Specifications
SeriesSMG
PackageBulk
Part StatusObsolete
Capacitance560 µF
Tolerance±20%
Voltage - Rated160 V
ESR (Equivalent Series Resistance)1.51Ohm @ 120Hz
Lifetime @ Temp.2000 Hrs @ 85°C
Operating Temperature-40°C ~ 85°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency1.47 A @ 120 Hz
Ripple Current @ High Frequency2.205 A @ 100 kHz
Impedance-
Lead Spacing0.394" (10.00mm)
Size / Dimension0.866" Dia (22.00mm)
Height - Seated (Max)1.575" (40.00mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can
Request Quote Now
Request Quote Now

We can supply SMG160VB561M22DLL, use the request quote form to request SMG160VB561M22DLL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SMG160VB561M22DLL. The price and lead time for SMG160VB561M22DLL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SMG160VB561M22DLL. We look forward to working with you to establish long-term relations of cooperation.
