AHD106M2AF24B

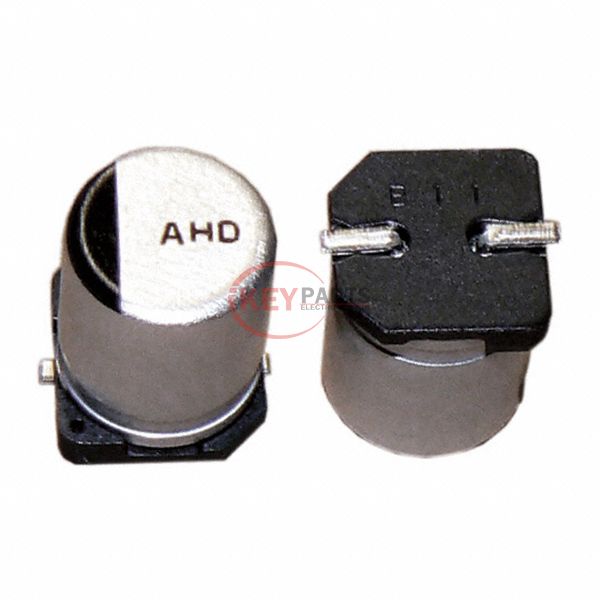

Enlarger

Lmages are for reference only See Product Specitications

Cornell Dubilier Electronics AHD106M2AF24B

Manufacturer :
Cornell Dubilier Electronics
Mfr. Part # :
AHD106M2AF24B
Description
CAP ALUM 10UF 20% 100V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AHD106M2AF24B PDF
In Stock
720
AHD106M2AF24B Tech Specifications
SeriesAHD
PackageBulk
Part StatusObsolete
Capacitance10 µF
Tolerance±20%
Voltage - Rated100 V
ESR (Equivalent Series Resistance)29.8Ohm @ 120Hz
Lifetime @ Temp.5000 Hrs @ 105°C
Operating Temperature-40°C ~ 105°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency55 mA @ 120 Hz
Ripple Current @ High Frequency93.5 mA @ 10 kHz
Impedance1.5 Ohms
Lead Spacing-
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.402" (10.20mm)
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply AHD106M2AF24B, use the request quote form to request AHD106M2AF24B pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AHD106M2AF24B. The price and lead time for AHD106M2AF24B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AHD106M2AF24B. We look forward to working with you to establish long-term relations of cooperation.
