UUD1E560MCR1GS

Enlarger

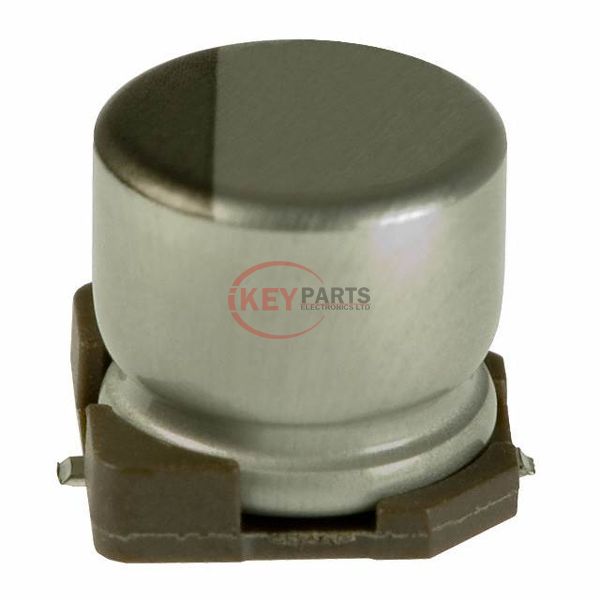

Lmages are for reference only See Product Specitications

Nichicon UUD1E560MCR1GS

Manufacturer :
Nichicon
Mfr. Part # :
UUD1E560MCR1GS
Description
CAP ALUM 56UF 20% 25V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
UUD1E560MCR1GS PDF
In Stock
560
UUD1E560MCR1GS Tech Specifications
SeriesUUD
PackageTape & Reel (TR)
Part StatusObsolete
Capacitance56 µF
Tolerance±20%
Voltage - Rated25 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency115 mA @ 120 Hz
Ripple Current @ High Frequency230 mA @ 100 kHz
Impedance440 mOhms
Lead Spacing-
Size / Dimension0.248" Dia (6.30mm)
Height - Seated (Max)0.228" (5.80mm)
Surface Mount Land Size0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply UUD1E560MCR1GS, use the request quote form to request UUD1E560MCR1GS pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UUD1E560MCR1GS. The price and lead time for UUD1E560MCR1GS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UUD1E560MCR1GS. We look forward to working with you to establish long-term relations of cooperation.
