AHD226M16C12T

Enlarger

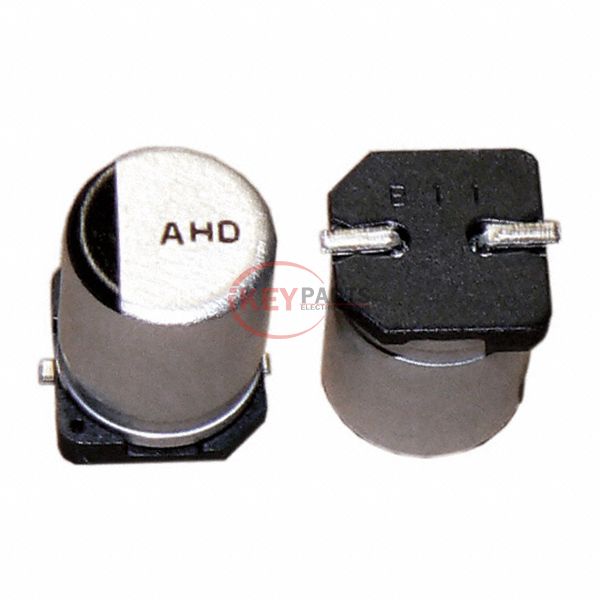

Lmages are for reference only See Product Specitications

Cornell Dubilier Electronics AHD226M16C12T

Manufacturer :
Cornell Dubilier Electronics
Mfr. Part # :
AHD226M16C12T
Description
CAP ALUM 22UF 20% 16V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AHD226M16C12T PDF
In Stock
402
AHD226M16C12T Tech Specifications
SeriesAHD
PackageTape & Reel (TR)
Part StatusObsolete
Capacitance22 µF
Tolerance±20%
Voltage - Rated16 V
ESR (Equivalent Series Resistance)15.1Ohm @ 120Hz
Lifetime @ Temp.5000 Hrs @ 105°C
Operating Temperature-40°C ~ 105°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency33 mA @ 120 Hz
Ripple Current @ High Frequency56.1 mA @ 10 kHz
Impedance7.2 Ohms
Lead Spacing-
Size / Dimension0.197" Dia (5.00mm)
Height - Seated (Max)0.228" (5.80mm)
Surface Mount Land Size0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply AHD226M16C12T, use the request quote form to request AHD226M16C12T pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AHD226M16C12T. The price and lead time for AHD226M16C12T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AHD226M16C12T. We look forward to working with you to establish long-term relations of cooperation.
