EKMH3B1VNN561MA45T

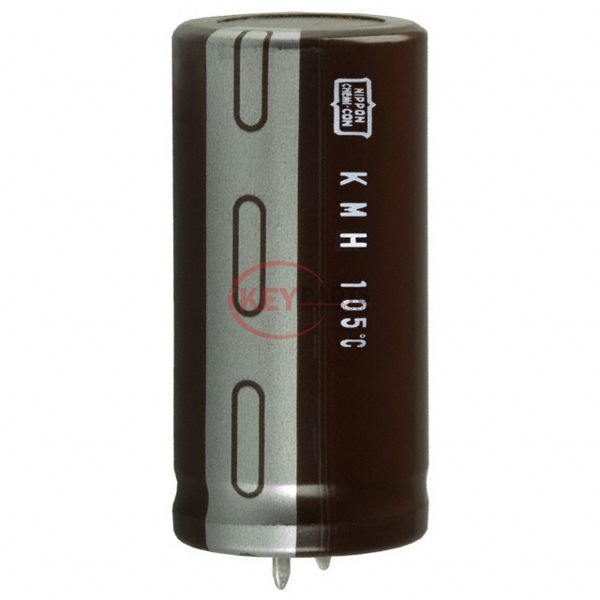

Enlarger

Lmages are for reference only See Product Specitications

United Chemi-Con EKMH3B1VNN561MA45T

Manufacturer :
United Chemi-Con
Mfr. Part # :
EKMH3B1VNN561MA45T
Description
CAP ALUM 560UF 20% 315V SNAP
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EKMH3B1VNN561MA45T PDF
In Stock
200
EKMH3B1VNN561MA45T Tech Specifications
SeriesKMH
PackageBulk
Part StatusObsolete
Capacitance560 µF
Tolerance±20%
Voltage - Rated315 V
ESR (Equivalent Series Resistance)444mOhm @ 120Hz
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-25°C ~ 105°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency1.9 A @ 120 Hz
Ripple Current @ High Frequency2.717 A @ 100 kHz
Impedance-
Lead Spacing0.394" (10.00mm)
Size / Dimension1.378" Dia (35.00mm)
Height - Seated (Max)1.850" (47.00mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can - Snap-In
Request Quote Now
Request Quote Now

We can supply EKMH3B1VNN561MA45T, use the request quote form to request EKMH3B1VNN561MA45T pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EKMH3B1VNN561MA45T. The price and lead time for EKMH3B1VNN561MA45T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EKMH3B1VNN561MA45T. We look forward to working with you to establish long-term relations of cooperation.
