AHD226M63F24B

Enlarger

Lmages are for reference only See Product Specitications

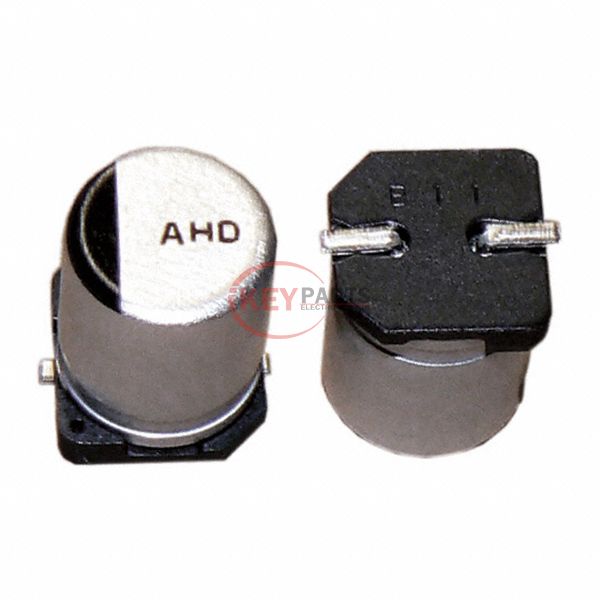

Cornell Dubilier Electronics AHD226M63F24B

Manufacturer :
Cornell Dubilier Electronics
Mfr. Part # :
AHD226M63F24B
Description
CAP ALUM 22UF 20% 63V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AHD226M63F24B PDF
In Stock
462
AHD226M63F24B Tech Specifications
SeriesAHD
PackageBulk
Part StatusObsolete
Capacitance22 µF
Tolerance±20%
Voltage - Rated63 V
ESR (Equivalent Series Resistance)13.6Ohm @ 120Hz
Lifetime @ Temp.5000 Hrs @ 105°C
Operating Temperature-40°C ~ 105°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency65 mA @ 120 Hz
Ripple Current @ High Frequency110.5 mA @ 10 kHz
Impedance1.5 Ohms
Lead Spacing-
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.402" (10.20mm)
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply AHD226M63F24B, use the request quote form to request AHD226M63F24B pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AHD226M63F24B. The price and lead time for AHD226M63F24B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AHD226M63F24B. We look forward to working with you to establish long-term relations of cooperation.
