74LVX03TTR

Enlarger

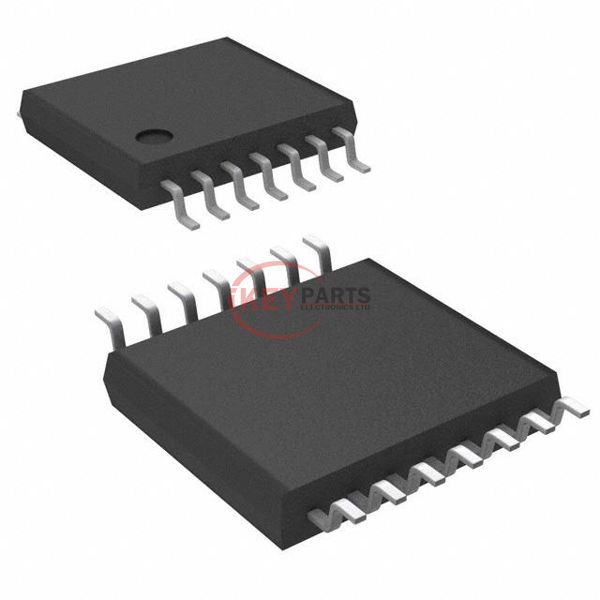

Lmages are for reference only See Product Specitications

STMicroelectronics 74LVX03TTR

Manufacturer :
STMicroelectronics
Mfr. Part # :
74LVX03TTR
Description
IC GATE NAND OD 4CH 2-IN 14TSSOP
Catalog
Logic - Gates and Inverters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
74LVX03TTR PDF
In Stock
277
74LVX03TTR Tech Specifications
Series74LVX
PackageTape & Reel (TR)
Part StatusObsolete
Logic TypeNAND Gate
Number of Circuits4
Number of Inputs2
FeaturesOpen Drain
Voltage - Supply2V ~ 3.6V
Current - Quiescent (Max)2 µA
Current - Output High, Low-, 4mA
Logic Level - Low0.5V ~ 0.8V
Logic Level - High1.5V ~ 2.4V
Max Propagation Delay @ V, Max CL13.5ns @ 3.3V, 50pF
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package14-TSSOP
Package / Case14-TSSOP (0.173", 4.40mm Width)
Request Quote Now
Request Quote Now

We can supply 74LVX03TTR, use the request quote form to request 74LVX03TTR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 74LVX03TTR. The price and lead time for 74LVX03TTR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 74LVX03TTR. We look forward to working with you to establish long-term relations of cooperation.
