Series | 74ALS | |
Package | Tube | |
Part Status | Obsolete | |
Logic Type | NOR Gate | |
Number of Circuits | 6 | |
Number of Inputs | 2 | |
Features | - | |
Voltage - Supply | 4.5V ~ 5.5V | |
Current - Quiescent (Max) | - | |
Current - Output High, Low | 15mA, 24mA | |
Logic Level - Low | 0.8V | |
Logic Level - High | 2V | |
Max Propagation Delay @ V, Max CL | 8ns @ 5V, 50pF | |
Operating Temperature | 0°C ~ 70°C | |
Mounting Type | Through Hole | |

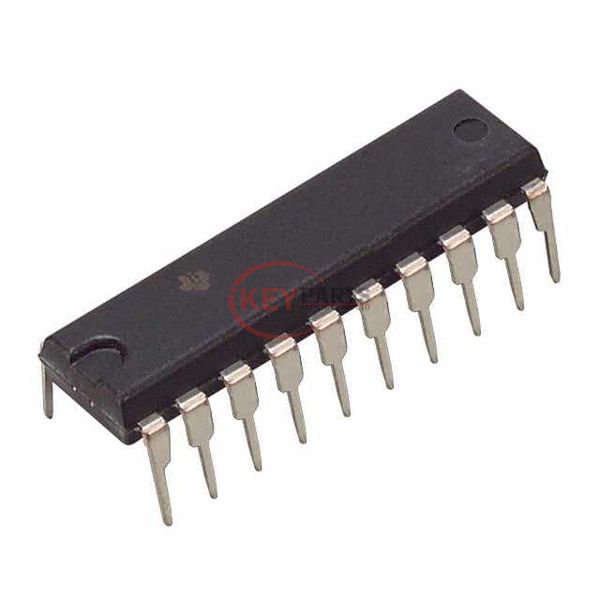

Supplier Device Package | 20-PDIP | |
Package / Case | 20-DIP (0.300", 7.62mm) |
We can supply SN74ALS805ANG4, use the request quote form to request SN74ALS805ANG4 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SN74ALS805ANG4. The price and lead time for SN74ALS805ANG4 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SN74ALS805ANG4. We look forward to working with you to establish long-term relations of cooperation.
![]() |
