MC14071BDT

Enlarger

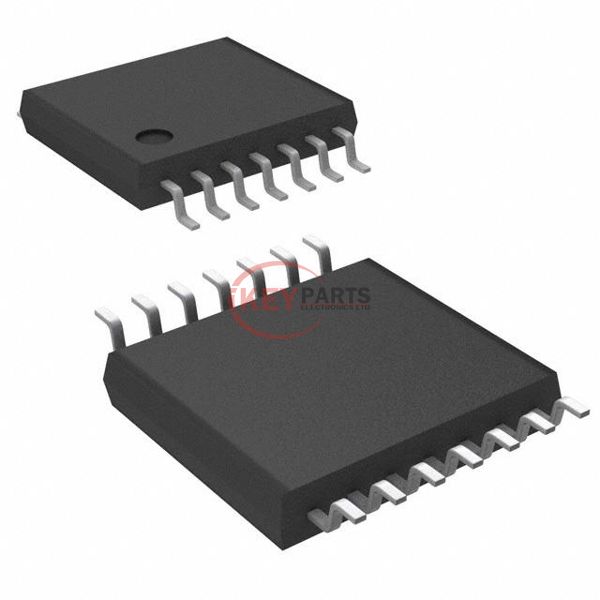

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor MC14071BDT

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
MC14071BDT
Description
IC GATE OR 4CH 2-INP 14TSSOP
Catalog
Logic - Gates and Inverters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MC14071BDT PDF
In Stock
732
MC14071BDT Tech Specifications
Series4000B
PackageTube
Part StatusObsolete
Logic TypeOR Gate
Number of Circuits4
Number of Inputs2
Features-
Voltage - Supply3V ~ 18V
Current - Quiescent (Max)1 µA
Current - Output High, Low8.8mA, 8.8mA
Logic Level - Low1.5V ~ 4V
Logic Level - High3.5V ~ 11V
Max Propagation Delay @ V, Max CL100ns @ 15V, 50pF
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package14-TSSOP
Package / Case14-TSSOP (0.173", 4.40mm Width)
Request Quote Now
Request Quote Now

We can supply MC14071BDT, use the request quote form to request MC14071BDT pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MC14071BDT. The price and lead time for MC14071BDT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MC14071BDT. We look forward to working with you to establish long-term relations of cooperation.
